Ref:

LLC76W7

Wide Collimator

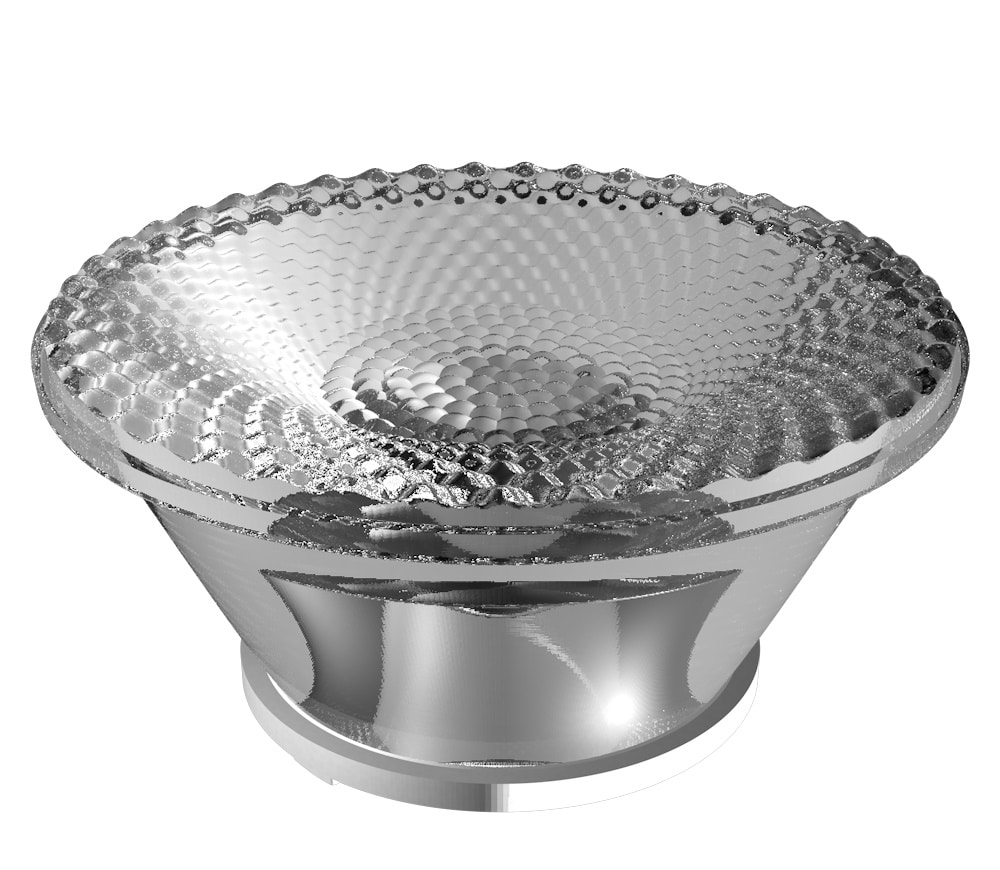

Ø 67 mm wide beam silicone collimator.

More details :

LLC76W7 is a Ø 67 mm wide beam silicone collimator. It is an evolution of the LLC66W7 wide beam silicon collimator. Using a snapped-in holder ring. it allows a very fast and reliable attachment of the optics to the interface. It is compatible with LLH76B4 for BJB COB holder compatibility.
LLC76W7 provides all of the beam quality benefits of the LLC66W7.
Discover how to choose the right holder.

Refine your search:

Measured results in black Simulated results in blue

Compatibility

LED Manufacturer LED Reference FWHM 1 FWHM 2 FWTM 1 FWTM 2 Efficacy 1 Efficacy 2 CCI
BRIDGELUXV13 BXRE_30E2000_B_8228.458.01.9
BRIDGELUXV4_HD BXRH_30G0600_A_7228.656.12.4
BRIDGELUXV10 BXRE_30E1000_B_0331.856.12.1
BRIDGELUXVESTA 6 TW BXRV-TR-2765G-060-B-2337.259.71.51.3
CITIZENCLU02828.257.22.5
CITIZENCLU7A228.455.82.4
CITIZENCLU03828.557.92.3
CITIZENCLU72030.356.02.1
CITIZENCLU72130.556.62.1
CITIZENCLU70033.854.02.1
CITIZENCLU70134.254.12.2
CITIZENCLU7B235.452.62.0
CITIZENCLU71136.261.51.7
CITIZENCLU70236.658.21.8
CREEXHP35.2 HD28.956.02.3
CREECXB 152030.654.72.0
CREECXB 150730.754.32.0
CREECXA 152032.056.02.2
CREECXA 150732.155.72.2
CREECXB 131033.353.22.2
CREEXHP70.233.755.62.1
CREECMA130334.853.32.0
CREEXP-L36.354.21.9
EDISON2PHM10xWxxP5502035.352.82.0
LUMILEDSLUXEON COB 1202S32.452.72.0
LUMILEDSLUXEON COB 10933.453.62.1
LUMILEDSLUXEON COB 1202 HD34.755.42.0
LUMINUSCDM_625.553.22.5
LUMINUSCTM_926.456.72.5
LUMINUSCXM_627.752.92.5
LUMINUSCVM_1428.558.02.4
LUMINUSCTM_1828.859.82.2
LUMINUSCVM_1830.161.42.0
NICHIANTCWS024B_V328.456.12.5
NICHIANFCWL036B_V328.756.62.5
NICHIANFCWL048B_V328.856.72.4
NICHIANVCWJ024Z_V1MT28.954.32.2
NICHIANTCLS024B_V132.352.72.0
NICHIANJCLS024Z32.853.92.1
NICHIANJCWS024Z_V133.454.92.1
OSRAMOSLON SQUARE GW CSSRM3.PM25.955.62.5
OSRAMSOLERIQ S930.655.32.2
OSRAMOSTAR PROJECTION COMPACT KW CSLNM1.TG34.451.52.1
OSRAMOSLON COMPACT CM LUW CEUN.CE34.749.92.2
SEOULSAWS0661A27.755.72.5
SEOULSAWS1063A32.356.12.2
XICATOXOB 931.955.01.8
XICATOXOB0633.453.12.0
View results

Compatible accessories:

Please select a unique LED reference
