Dimensions : 45x20.1mm

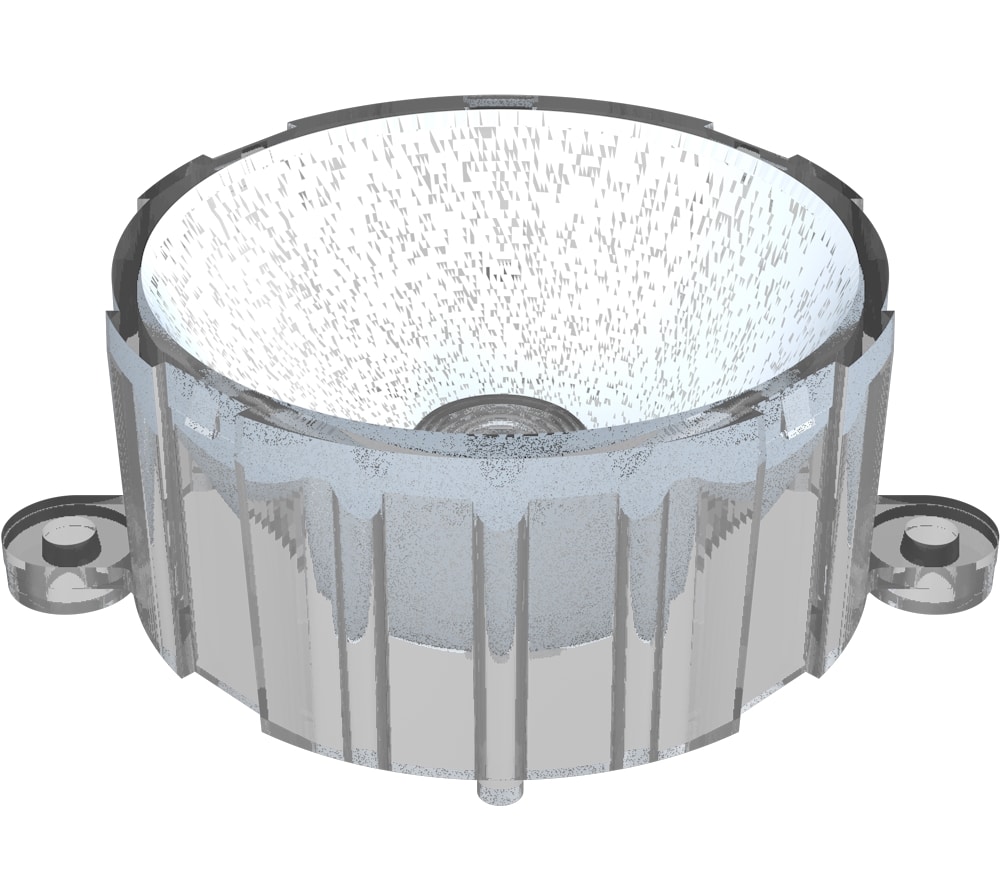

Ø 45 mm narrow beam PC reflector.
More details :
LLR01N is a Ø 45 mm narrow beam PC reflector. It combines hybrid reflection technology for better beam control with state of the art silver coating. capable of a 97% reflection ratio.

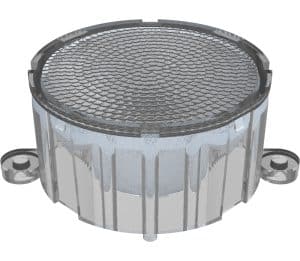

It is also available with optional clipped windows providing various beam angles.
Discover how to choose the right holder.
Refine your search:
Please select a unique LED reference to list compatible holders and photometrics results
Compatibility Click on a unique LED reference to access the .ies and .ldt files.
| LED Manufacturer | LED Reference | FWHM 1 | FWHM 2 | FWTM 1 | FWTM 2 | LOR | Efficacy 1 | Efficacy 2 | CCI |
|---|---|---|---|---|---|---|---|---|---|
| BRIDGELUX | V4_HD BXRH_30G0600_A_72 | 11.2 | 25.2 | 92.6 | 10.5 | ||||
| BRIDGELUX | V10 BXRE_30E1000_B_03 | 21.3 | 43.6 | 92.4 | 4.0 | ||||
| BRIDGELUX | VERO 10 BXRC_30E1000_B_03 | 24.1 | 48.3 | 91.7 | 3.4 | ||||
| BRIDGELUX | VERO 10 SE BXRC_30E1000_C_72 | 32.0 | 76.8 | 85.3 | 1.9 | ||||
| CITIZEN | CLU7A2 | 8.9 | 17.6 | 94.6 | 19.0 | ||||
| CITIZEN | CLU701 | 16.2 | 31.5 | 91.6 | 7.1 | ||||
| CITIZEN | CLU711 | 16.6 | 38.9 | 88.9 | 4.6 | ||||
| CITIZEN | CLU028 | 18.0 | 42.1 | 88.3 | 4.1 | ||||
| CITIZEN | CLU700 | 18.5 | 34.2 | 93.1 | 5.9 | ||||
| CITIZEN | CLU710 | 19.8 | 40.3 | 93.0 | 4.6 | ||||
| CITIZEN | CL-L020 | 21.9 | 44.2 | 89.3 | 3.8 | ||||
| CITIZEN | CLL330 | 23.2 | 51.4 | 89.3 | 3.2 | ||||
| CITIZEN | CLU720 | 23.8 | 53.9 | 89.5 | 3.0 | ||||
| CREE | XQ-E HI | 4.6 | 8.9 | 95.0 | 57.8 | ||||
| CREE | XP-E2 | 5.1 | 9.5 | 93.4 | 52.5 | ||||
| CREE | XP-L HI | 5.3 | 10.5 | 94.8 | 45.4 | ||||
| CREE | XHP35 HI | 6.1 | 13.1 | 88.8 | 28.8 | ||||
| CREE | XP-G2 | 6.4 | 12.1 | 93.0 | 35.5 | ||||
| CREE | XP-G3 | 6.7 | 12.4 | 93.4 | 34.1 | ||||
| CREE | XQ-E | 6.7 | 11.6 | 91.5 | 34.6 | ||||
| CREE | XD16 | 6.9 | 14.2 | 81.7 | 24.9 | ||||
| CREE | XT-E HE | 7.1 | 14.1 | 90.9 | 27.7 | ||||
| CREE | XHP35.2 HI | 7.6 | 15.4 | 89.0 | 24.8 | ||||
| CREE | XP-L2 | 8.8 | 18.8 | 91.5 | 17.6 | ||||
| CREE | XHP35.2 HD | 10.1 | 22.4 | 85.4 | 12.0 | ||||
| CREE | XHP50.2 | 12.0 | 24.5 | 92.5 | 11.1 | ||||
| CREE | CXB 1310 | 12.3 | 27.0 | 91.1 | 8.6 | ||||
| CREE | MK-R2 | 12.3 | 26.9 | 90.5 | 9.5 | ||||
| CREE | CXA 13XX | 14.0 | 26.3 | 93.7 | 9.5 | ||||
| CREE | MT-G2 | 16.9 | 34.6 | 91.8 | 6.1 | ||||
| CREE | MT-G | 17.0 | 34.7 | 90.3 | 6.3 | ||||
| CREE | XHP70 | 17.0 | 31.1 | 91.3 | 7.0 | ||||
| CREE | XHP70.2 | 17.1 | 34.1 | 91.8 | 6.2 | ||||
| CREE | CMA1303 | 17.9 | 32.0 | 85.9 | 6.3 | ||||
| CREE | CXB 1520 | 18.0 | 43.5 | 88.7 | 3.9 | ||||
| CREE | CXA 1520 | 22.9 | 45.8 | 88.6 | 3.6 | ||||
| CREE | CXA 18XX | 25.7 | 58.9 | 87.9 | 2.7 | ||||
| EDISON | 2PHM10XWXXP55020 | 15.6 | 31.8 | 83.3 | 5.5 | ||||
| LUMILEDS | LUXEON C | 4.8 | 8.7 | 92.8 | 64.5 | ||||
| LUMILEDS | LUXEON MZ | 8.8 | 16.3 | 91.9 | 20.6 | ||||
| LUMILEDS | LUXEON M | 12.7 | 24.5 | 90.7 | 10.4 | ||||
| LUMILEDS | LUXEON S1000 | 15.3 | 28.9 | 90.0 | 7.7 | ||||
| LUMILEDS | LUXEON COB 1202S | 15.8 | 31.5 | 91.3 | 6.9 | ||||
| LUMILEDS | LUXEON COB 109 | 16.8 | 36.6 | 90.3 | 5.4 | ||||
| LUMILEDS | LUXEON COB 1203 | 20.6 | 44.5 | 89.0 | 3.8 | ||||
| LUMILEDS | LUXEON COB 1205 | 28.8 | 71.9 | 83.8 | 2.1 | ||||
| LUMINUS | CDM_6 | 11.2 | 28.3 | 86.4 | 8.7 | ||||
| LUMINUS | CXM_6 | 12.5 | 25.5 | 89.8 | 9.5 | ||||
| LUMINUS | CTM_9 | 21.5 | 43.5 | 90.6 | 4.0 | ||||
| NICHIA | NVSW319A | 8.0 | 15.6 | 88.8 | 23.0 | ||||
| NICHIA | NVSL219C | 9.0 | 15.9 | 92.9 | 22.9 | ||||
| NICHIA | NWSL229A | 9.1 | 16.4 | 93.9 | 21.1 | ||||
| NICHIA | NV4L144AR | 12.4 | 22.8 | 91.2 | 11.5 | ||||
| NICHIA | NTCWT012B_V3 | 13.1 | 29.5 | 92.6 | 8.0 | ||||
| NICHIA | NJCWL024Z_V1MT | 14.1 | 34.0 | 83.2 | 5.7 | 3.6 | |||
| NICHIA | NVNWS007Z_V1 | 15.3 | 30.4 | 91.5 | 7.4 | ||||
| NICHIA | NFCWL036B_V3 | 15.8 | 37.4 | 87.9 | 4.9 | ||||
| NICHIA | NTCLS024B_V1 | 16.8 | 33.2 | 94.9 | 6.5 | ||||
| NICHIA | NJCLS024Z | 17.0 | 34.3 | 93.9 | 6.1 | ||||
| NICHIA | NJCWS024Z_V1 | 17.1 | 34.4 | 91.6 | 5.9 | ||||
| NICHIA | NVEWL016Z_V1 | 19.6 | 42.1 | 91.2 | 4.3 | ||||
| NICHIA | NVCWJ024Z_V1MT | 20.2 | 55.8 | 88.6 | 3.0 | ||||
| NICHIA | NFCLL036B_V1 | 20.5 | 43.2 | 89.4 | 4.1 | ||||
| NICHIA | NVCWL024Z_V1 | 22.3 | 52.1 | 89.5 | 3.2 | ||||
| OSRAM | OSTAR PROJECTION COMPACT KW CSLNM1.TG | 4.2 | 7.9 | 86.1 | 65.4 | ||||
| OSRAM | OSLON SQUARE FLAT KW CSLPM2.PC | 4.8 | 9.9 | 94.2 | 50.6 | ||||
| OSRAM | OSLON SQUARE LCW CQAR | 6.3 | 13.0 | 91.9 | 30.9 | ||||
| OSRAM | OSLON SQUARE GW CSSRM1.PC | 7.2 | 14.2 | 91.6 | 26.7 | ||||
| OSRAM | OSLON COMPACT CM LUW CEUN.CE | 7.2 | 12.1 | 88.8 | 32.2 | ||||
| OSRAM | OSLON SQUARE GW CSSRM1.EC | 8.5 | 15.3 | 93.0 | 24.6 | ||||
| OSRAM | OSLON SQUARE GW CSSRM3.PM | 9.8 | 19.6 | 90.7 | 16.1 | ||||
| OSRAM | DURIS S8 P9LMS1.EM | 10.6 | 20.3 | 94.4 | 14.7 | ||||
| OSRAM | DURIS S8 P9LT32.PM | 13.1 | 24.3 | 93.4 | 11.0 | ||||
| OSRAM | DURIS S8 P9LRS1.EM | 13.3 | 22.2 | 91.7 | 12.2 | ||||
| PLESSEY | PLW7070GA | 13.3 | 26.3 | 91.2 | 9.3 | ||||
| SAMSUNG | LC010CV2 | 16.0 | 31.5 | 93.2 | 7.0 | ||||
| SEOUL | Z5 | 5.4 | 9.8 | 93.4 | 46.4 | ||||
| SEOUL | Z5_M1 | 5.5 | 11.0 | 94.2 | 40.1 | ||||
| SEOUL | SAWS0661A | 16.7 | 32.5 | 91.0 | 6.8 | ||||
| SEOUL | SAWS1063A | 21.4 | 45.2 | 91.0 | 3.7 | ||||
| XICATO | XOB06 | 13.2 | 30.0 | 87.2 | 7.7 |
