LLC49M

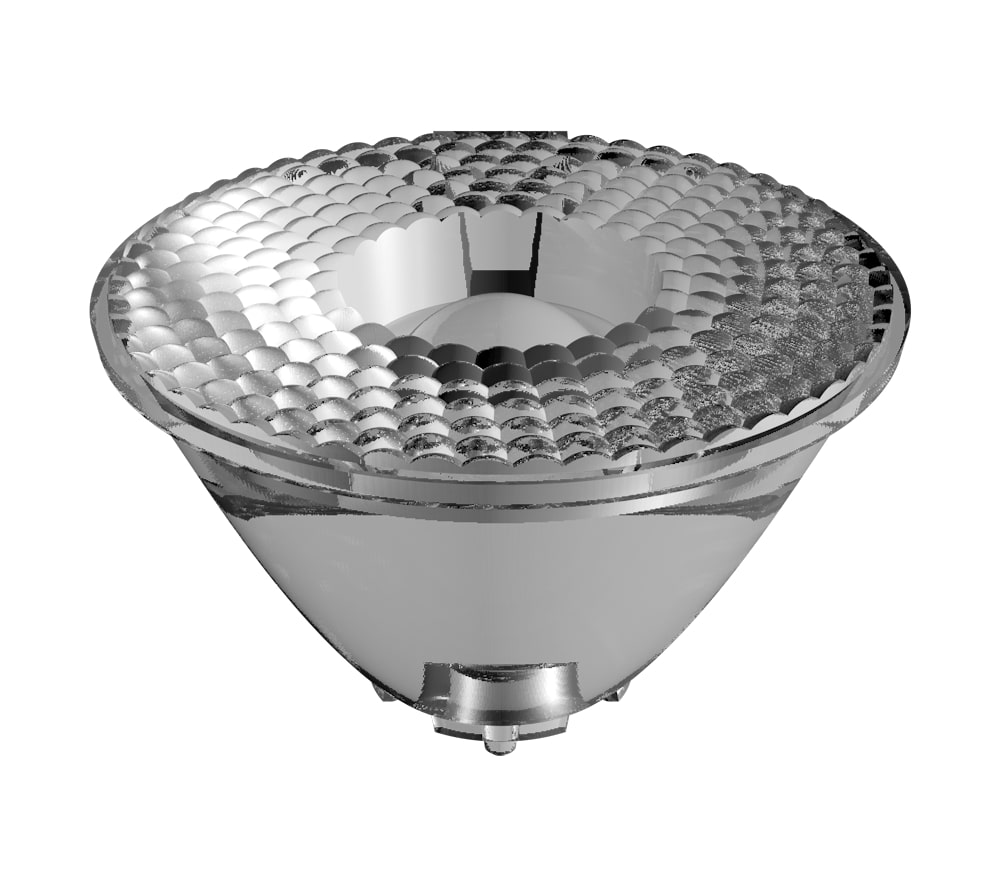

Medium Collimator

Ø 45 mm medium beam PMMA collimator.

More details :

LLC49M is a Ø 45 mm medium beam PMMA collimator. LLC49M has been designed to work with various RGBW. tunable white or white sources. providing a smooth and homogeneous medium angle beam.
All of our PMMA based references can also be manufactured out of Polycarbonate (PC). Please contact us for more details.
Discover how to choose the right holder.

Refine your search:

LED Manufacturer

LED Type

LED Reference

Please choose LED Type first

Light Emitting Surface

mm diameter array

mm² surface

Dome

Yes

Measured results in black Simulated results in blue

Compatibility

LED Manufacturer	LED Reference	FWHM 1	FWTM 1	Efficacy 1	CCI
BRIDGELUX	V4_HD BXRH_30G0600_A_72	23.1	45.7	3.6
CREE	XP-E	21.3	42.5	5.1
CREE	XP-G4	21.8	42.5	4.2	0.4
CREE	XP-G2	21.8	43.3	4.0
CREE	XP-G	21.8	43.9	3.9
CREE	XP-E2	22.0	42.5	4.1
CREE	XP-P	22.3	42.7	4.1	0.5
CREE	XHP35.2 HI	22.4	43.9	3.9	0.2
CREE	XQ-E HI	22.5	43.2	3.9
CREE	XT-E HE	22.5	44.8	3.7
CREE	XP-L	22.6	44.6	3.7
CREE	XM-L2	22.7	44.6	3.7	0.4
CREE	XD16	22.7	44.8	3.6
CREE	XP-G2 HE	22.7	44.5	3.8	0.5
CREE	XHP35 HI	22.8	44.4	3.7
CREE	XP-G3	22.9	45.4	3.6
CREE	XD16 Premium White	23.0	44.7	3.7	0.7
CREE	XM-L COLOR GEN 2 HIGH INTENSITY	23.4	45.7	3.6	2.5
CREE	XM-L COLOR GEN 2 HIGH DENSITY	23.4	45.5	3.6	2.6
CREE	XM-L EASYWHITE	23.5	45.0	3.7
CREE	XHP50.3 HI	23.5	46.0	3.6	0.7
CREE	XPL-HI_post_PCN5155	23.5	45.9	3.4	0.4
CREE	XQ-E HI CLUSTER x4 RGBW	23.6	47.0	3.4	3.8
CREE	XP-L HI	23.6	46.3	3.3	0.3
CREE	XE-G CLUSTER x4 RGBW	23.6	47.2	3.3	3.6
CREE	XP-L2	23.8	45.8	3.5
CREE	XHP35.2 HD	23.9	48.8	3.1
CREE	XHP50.2	24.1	47.7	3.3
CREE	MK-R	24.1	47.7	3.2
CREE	XHP50	24.1	48.3	3.2
CREE	XHP50.3 HD	24.3	47.9	3.2	0.4
CREE	MK-R2	25.2	47.9	3.0
CREE	XQ-E	26.0	52.5	2.9
CREE	XHP70.2	26.4	52.7	2.5
CREE	XHP70.3	27.1	55.6	2.3	0.8
EDISON	EDISON_2FM004M601F03001	23.4	46.2	3.6	3.4
LED ENGIN	LZ1 14CWP2	22.6	43.6	4.0
LED ENGIN	LZ4-01MNCA	23.3	45.9	3.6	2.0
LED ENGIN	LZ7-04M2PD	23.3	45.5	3.7	3.2
LUMILEDS	LUXEON Z ES	22.0	42.5	4.1
LUMILEDS	LUXEON C	22.3	44.0	3.7
LUMILEDS	LUXEON Z CLUSTER x4 RGBW	22.5	43.6	3.9	2.9
LUMILEDS	LUXEON TX	22.7	43.8
LUMILEDS	LUXEON MZ	22.9	44.8	3.7
LUMILEDS	LUXEON Z CLUSTER x4 TUNABLE WHITE	22.9	45.9	3.5	1.0
LUMILEDS	LUXEON M	23.2	46.0	3.7
LUMILEDS	LUXEON RUBIX CLUSTER x4 RGBW	24.0	46.6	3.4	2.6
LUMILEDS	LUXEON CZ CLUSTER x4 RGBW	24.0	46.4	3.4	3.5
LUMILEDS	LUXEON T	24.2	43.0	4.1
LUMILEDS	LUXEON C CLUSTER x4 RGBW	24.9	49.7	2.8
LUMINUS	SBM_40_SC	21.4	41.5	4.4	3.0
LUMINUS	SST_20_WxH	22.6	44.0	4.6
LUMINUS	SST-40	22.6	44.6	3.7	0.4
LUMINUS	SFT-40	22.7	43.9	3.9	1.4
LUMINUS	SST-12	23.0	44.4	3.7	0.4
LUMINUS	SFT-70	23.1	44.8	3.7	0.8
LUMINUS	SST-70	23.4	45.9	3.5	0.4
LUMINUS	SST_20_WxS	23.5	44.8	4.4
LUMINUS	CDM_6	25.4	51.0	2.7
NICHIA	NVSW219CT-V2	22.1	43.3	4.0	0.6
NICHIA	NV4WB35AM	22.1	44.4	3.5
NICHIA	NCSWE17AT	22.2	43.7	4.0
NICHIA	NVSW319A	22.2	43.5	3.8
NICHIA	NFSWE11A	22.3	43.5	4.5
NICHIA	NVSW719AC	22.4	43.8	3.8	0.8
NICHIA	NVSWE21AT	22.4	43.8	3.9
NICHIA	NVSL219C	22.4	44.0	3.8
NICHIA	NF2W757G_MT	22.6	44.1	4.0	1.8
NICHIA	NWSL229A	23.1	45.5	3.6
NICHIA	NVSW219F_V1	23.3	44.2	4.6
NICHIA	NV4L144AR	23.7	46.6	3.4
NICHIA	NVSW519A	23.8	45.4	4.3
NICHIA	E17A CLUSTER x4 RGBW	24.8	49.0	3.0	4.9
OSRAM	OSLON SQUARE FLAT KW CSLPM2.PC	10.8	17.6	18.8
OSRAM	OSLON COMPACT CL LUW CEUP	20.6	39.8	4.7
OSRAM	OSTAR PROJECTION COMPACT KW CSLNM1.TG	20.9	42.0	4.3
OSRAM	OSTAR LIGHTING PLUS	21.1	43.8	4.2
OSRAM	OSLON SQUARE GW CSSRM3.PM	21.6	43.1	4.0
OSRAM	OSLON COMPACT CM LUW CEUN.CE	21.7	42.0	4.4
OSRAM	OSLON BLACK FLAT LUW HWQP	21.8	41.7	4.3
OSRAM	OSTAR STAGE LE RTDUW S2WM	21.8	42.3	4.3	2.8
OSRAM	OSLON SQUARE GW CSSRM1.PC	22.0	43.3	4.0
OSRAM	OSLON SQUARE GW CSSRM2.PM	22.0	43.1	4.1
OSRAM	OSLON SQUARE LCW CQAR	22.1	43.5	4.0
OSRAM	OSLON SQUARE GW CSSRM1.EC	22.2	43.6	4.0
OSRAM	OSTAR STAGE LE RTDUW S2WN	22.2	43.0	4.1	2.4
OSRAM	OSLON SSL 150	22.3	44.3	3.8
OSRAM	OSTAR STAGE LE RTDUW S2W	22.3	43.3	3.9	1.9
OSRAM	OSLON SQUARE GW CSSRM1.BM	22.4	43.9	3.8	0.5
OSRAM	OSLON Boost HX KW CULPM1.TG	22.5	43.7	4.1
OSRAM	OSLON SSL 80	22.5	44.2	3.7
OSRAM	OSLON COMPACT PL KW CELNM2.TK	22.5	44.3	3.7	1.1
OSRAM	PURE 1010 TUNABLE CLUSTER x4	22.7	44.6	3.7
OSRAM	OSLON BOOST HM KW CELMM1.TG	22.7	44.4	3.8	0.9
OSRAM	OSTAR STAGE LE CWUW S2W	22.9	44.2	3.8	1.2
OSRAM	OSCONIQ P3737 GW PULTA1.CM	23.0	44.7	3.9
OSRAM	OSLON PURE 1010 GW VJLPE1 EM	23.0	45.1	3.8
OSRAM	PURE 1010 RGBW CLUSTER x4	23.1	45.7	3.6	3.4
OSRAM	OSCONIQ P3737 GW PUSRA1.EM	23.2	45.5	3.7
OSRAM	OSCONIQ P3737 GW PUSTA1.PM	23.2	45.4	3.7
OSRAM	OSCONIQ C 2424 GW PLLRA1.EM	23.2	45.9	3.6
OSRAM	OSLON SQUARE GW CSSRMU.CM	23.3	45.3	3.7	0.7
OSRAM	OSTAR STAGE LE RTDUW S2WP	23.5	46.1	3.6	2.5
OSRAM	DURIS P10	23.8	47.2	3.3
OSRAM	DURIS S8 P9LT32.PM	23.9	47.2	3.3
PROLIGHT OPTO	PBEE_40FTE	22.4	46.0	3.4	3.2
PROLIGHT OPTO	PQ2A CLUSTER x4 RGBW	24.0	47.5	3.2	7.7
SEOUL	Z7	21.4	43.8	4.1
SEOUL	SPF05F0B	22.0	42.7	4.2	3.8
SEOUL	Z5	22.4	44.2	3.7
SEOUL	Z5M4	22.5	44.0	4.6
SEOUL	Z5_M1	22.6	44.1	3.8
SEOUL	SPF05F0A	22.8	44.5	3.8	2.4
SEOUL	SAWS0661A	24.4	48.8	3.1

View results

Compatible accessories:

Please select a unique LED reference
