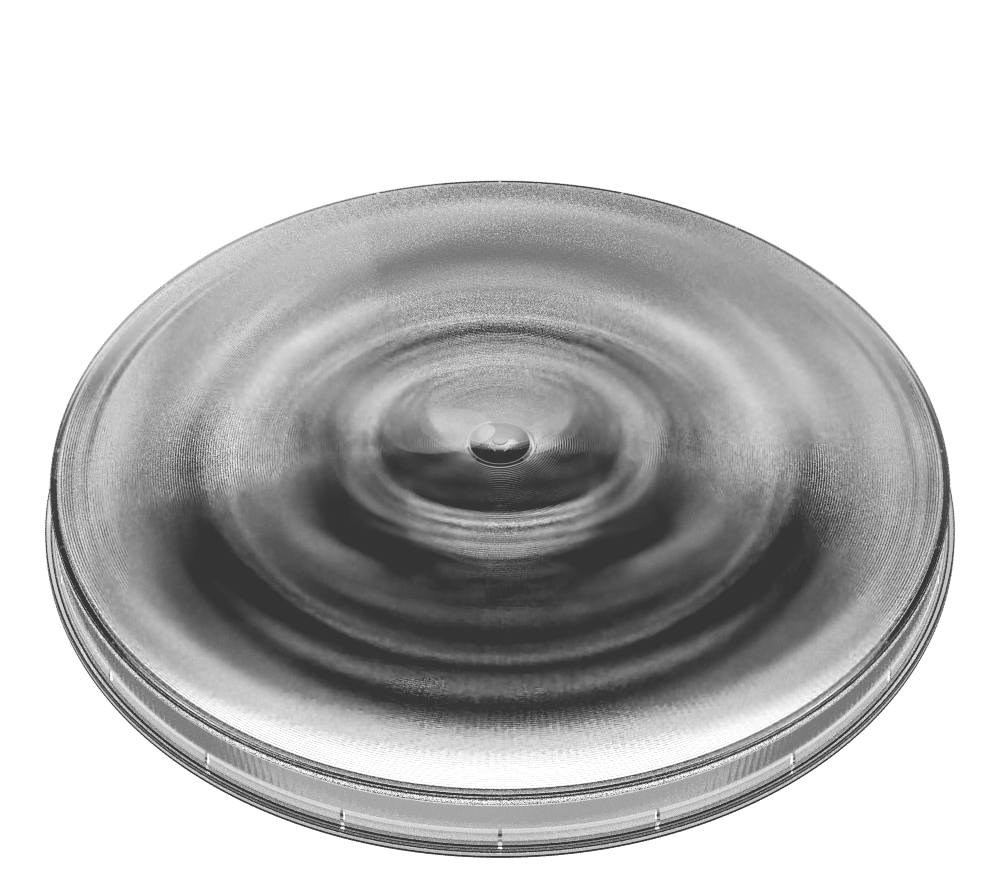

LLF300 Ø 284 mm large beam PMMA fresnel lens.
More details :
LLF300 is a Ø 284 mm large beam PMMA fresnel lens. This PMMA
The LLF300 is a part of GAGGIONE’s Fresnel lenses family adapted to the traffic light market.
Parts are specifically designed to ensure good visibility, safety and durability.
By simply adjusting the LED positions under the lens – you can full fill both angular distribution of luminous intensity requirements:
Type E (extra wide) and Type W (wide) requirements (EN 12368).
Type W and Type E distributions support clear signal recognition across wide viewing angles.
Type W wide distribution provides broad, reliable signal visibility across a wide viewing field, supporting clear recognition in typical urban and road-intersection environments.
Type E extra-wide distribution extends signal visibility over a larger angular field, helping road users recognize the signal clearly even from short distances or wider approach angles.
One side of the element comprises a Fresnel lens, the other side comprises a diffusive surface made of a micro-lenses array. The LLF200 has a clear aperture (optical active surface diameter) of 170 mm, and a focal length of 82 mm. The LED have to be placed within the focal plane.
Find more information on the Application Note
Refine your search:
Please select a unique LED reference to list compatible holders and photometrics results
Compatibility Click on a unique LED reference to access the .ies and .ldt files.
| LED Manufacturer | LED Reference | FWHM 1 | FWHM 2 | FWTM 1 | FWTM 2 | LOR | Efficacy 1 | Efficacy 2 | CCI |
|---|---|---|---|---|---|---|---|---|---|
