Ø 45 mm zoom beam PMMA kit.
More details :

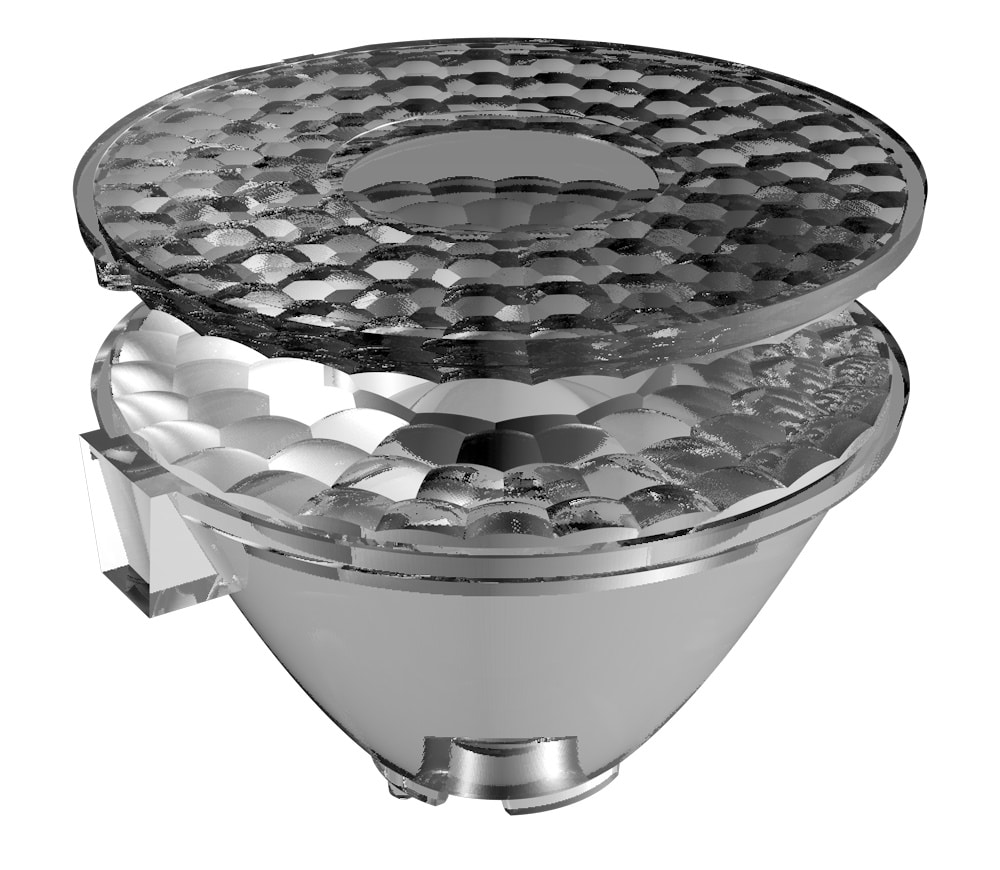

Assembled kit made of the Ø 45 mm collimator LLC49Z and LLW19Z window. LLK49ZLLW19Z is a PMMA combination providing a zoom system. It’s also tunable white capable. Its the first generation of zoom system in a 45mm form factor.
All of our PMMA based references can also be manufactured out of Polycarbonate (PC). Please contact us for more details.
Discover how to choose the right holder.
Refine your search:
Please select a unique LED reference to list compatible holders and photometrics results
Compatibility Click on a unique LED reference to access the .ies and .ldt files.
| LED Manufacturer | LED Reference | FWHM 1 | FWHM 2 | FWTM 1 | FWTM 2 | LOR | Efficacy 1 | Efficacy 2 | CCI |
|---|---|---|---|---|---|---|---|---|---|
| CREE | XP-G2 HE | 8.9 | 23.8 | 16.8 | 45.2 | 76.3 | 21.1 | 3.4 | 0.6 |
| CREE | XHP35.2 HI | 9.2 | 23.1 | 17.4 | 42.8 | 83.6 | 21.7 | 4.0 | |
| CREE | XQ-E HI CLUSTER X4 RGBW | 12.2 | 26.3 | 21.2 | 47.3 | 82.8 | 13.5 | 3.1 | 16.4 |
| CREE | XHP50.2 | 13.9 | 26.4 | 25.5 | 47.1 | 83.8 | 10.1 | 3.1 | |
| LUMILEDS | LUXEON Z CLUSTER X4 RGBW | 10.1 | 20.9 | 20.0 | 38.4 | 79.6 | 14.9 | 4.9 | 14.8 |
| LUMILEDS | LUXEON M | 14.8 | 27.6 | 25.4 | 47.8 | 83.9 | 10.0 | 2.9 | |
| LUMINUS | SBM_40_SC | 8.4 | 21.4 | 15.4 | 40.5 | 82.4 | 26.6 | 4.6 | 11.7 |
| NICHIA | NF2W757G_MT | 8.8 | 22.2 | 16.3 | 42.1 | 84.9 | 24.1 | 4.2 | 4.8 |
| NICHIA | NV4WB35AM | 10.5 | 23.6 | 19.4 | 43.8 | 78.8 | 15.2 | 3.4 | |
| OSRAM | OSTAR PROJECTION COMPACT KW CSLNM1.TG | 7.7 | 19.9 | 13.6 | 35.4 | 84.6 | 30.8 | 5.7 | |
| OSRAM | OSTAR STAGE LE RTDUW S2WN | 8.0 | 34.8 | 15.6 | 54.1 | 84.5 | 27.5 | 2.1 | 1.1 |
| OSRAM | OSTAR STAGE LE RTDUW S2W | 8.0 | 21.4 | 15.2 | 42.0 | 84.9 | 27.5 | 4.1 | 1.0 |
| OSRAM | OSTAR STAGE LE RTDUW S2WM | 8.3 | 22.9 | 15.3 | 43.5 | 82.4 | 27.4 | 4.1 | 8.7 |
| OSRAM | OSCONIQ C 2424 GW PLLRA1.EM | 8.5 | 16.5 | 82.6 | 22.9 | 1.2 | |||
| OSRAM | OSTAR STAGE LE RTDUW S2WP | 9.3 | 23.6 | 17.9 | 45.0 | 87.3 | 21.0 | 3.7 | |
| OSRAM | PURE 1010 RGBW CLUSTER X4 | 10.0 | 18.7 | 77.6 | 16.4 | 18.7 | |||
| OSRAM | OSLON PURE 1010 GW VJLPE1 EM | 11.3 | 22.2 | 17.8 | 44.1 | 68.3 | 13.8 | 3.0 | |
| OSRAM | PURE 1010 TUNABLE CLUSTER X4 | 31.5 | 40.0 | 52.5 | 54.2 | 86.3 | 2.1 | 1.8 | |
| PROLIGHT OPTO | PBEE_40FTE | 8.5 | 21.7 | 15.7 | 40.6 | 81.4 | 25.4 | 4.5 | 1.8 |
| SEOUL | SPF05F0A | 8.5 | 21.8 | 15.7 | 41.8 | 84.2 | 25.8 | 4.5 | 8.6 |
