Ø 67 mm silicone narrow beam collimator LLC66Z7 + black holder
More details :

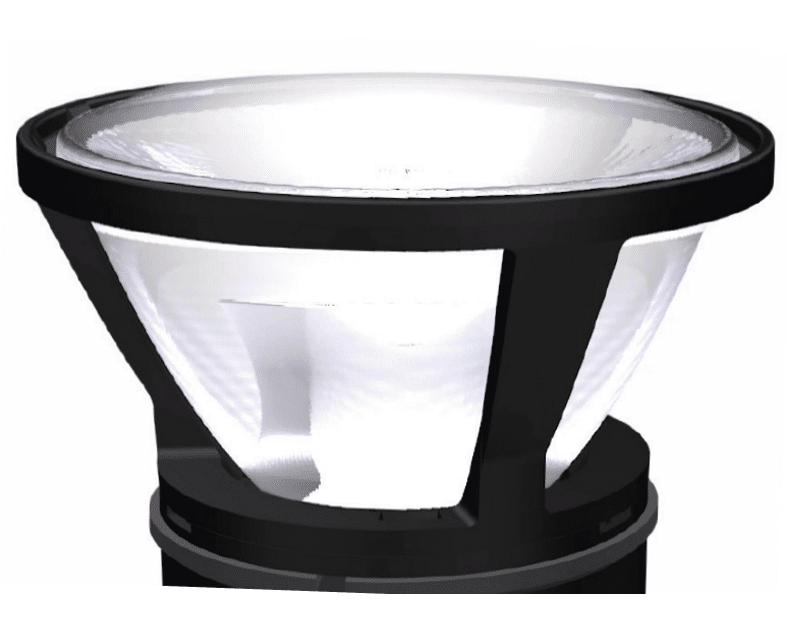

Assembled set made of the Ø 67 mm silicone narrow beam collimator LLC66Z7 and the black holder.
All the measurements and LED compatibilities can be found on the collimator webpage.
For more information. watch the video about LLC66x7 integrated solution.
Download the leaflet.
Picture might not reflect the right collimator being part of this set. Please check dedicated 2D drawing and 3D drawings.
Important : bases* are mandatory for integration and are sold separately.
Discover how to choose the right holder.
Refine your search:
Please select a unique LED reference to list compatible holders and photometrics results
Compatibility Click on a unique LED reference to access the .ies and .ldt files.
| LED Manufacturer | LED Reference | FWHM 1 | FWHM 2 | FWTM 1 | FWTM 2 | LOR | Efficacy 1 | Efficacy 2 | CCI |
|---|---|---|---|---|---|---|---|---|---|
| BRIDGELUX | V3_HD_GEN_8 | 7.4 | 14.0 | 91.8 | 38.9 | 0.8 | |||
| BRIDGELUX | V4_HD BXRH_30G0600_A_72 | 8.3 | 15.4 | 92.2 | 31.3 | ||||
| BRIDGELUX | VESTA 6 TW BXRV-TR-2765G-060-B-23 | 11.0 | 19.5 | 91.4 | 21.3 | 2.0 | |||
| BRIDGELUX | V6 HD BXRH_40E1000_B_73 | 11.5 | 19.1 | 93.3 | 19.7 | ||||
| BRIDGELUX | VESTA 9 TW CSP BXRV-TR-2750G-1000-A23 | 15.8 | 31.8 | 87.0 | 7.9 | ||||
| BRIDGELUX | V10 F90 ARRAY SERIES | 15.9 | 19.6 | 30.1 | 50.4 | 85.9 | 8.3 | 3.0 | 0.6 |
| BRIDGELUX | V10 BXRE_30E1000_B_03 | 16.1 | 25.2 | 91.7 | 11.2 | ||||
| BRIDGELUX | V13 BXRE_30E2000_B_82 | 21.2 | 34.7 | 94.4 | 6.4 | ||||
| BRIDGELUX | V13 F90 ARRAY SERIES | 24.7 | 17.8 | 44.4 | 52.5 | 86.9 | 3.7 | 2.6 | 1.4 |
| CITIZEN | CLU7L3 | 8.1 | 14.7 | 87.9 | 33.0 | 0.9 | |||
| CITIZEN | CLU7A3 TYPE-F | 8.8 | 15.1 | 89.1 | 30.1 | 0.9 | |||
| CITIZEN | CLU7A2 | 9.2 | 15.9 | 86.7 | 26.6 | 2.4 | |||
| CITIZEN | CLU700 | 9.9 | 18.0 | 93.9 | 24.7 | ||||
| CITIZEN | CLU701 | 10.2 | 18.0 | 87.2 | 21.7 | 1.6 | |||
| CITIZEN | CLU7A3 | 10.4 | 29.5 | 19.6 | 57.0 | 89.3 | 19.3 | 2.3 | 0.8 |
| CITIZEN | CLU703 | 11.4 | 19.7 | 86.6 | 17.6 | 1.0 | |||
| CITIZEN | CLU702 | 11.6 | 19.8 | 84.5 | 18.3 | ||||
| CITIZEN | CLU703 TYPE-F | 11.8 | 19.8 | 93.8 | 19.0 | 0.8 | |||
| CITIZEN | CLU710 | 13.8 | 23.4 | 92.2 | 13.9 | ||||
| CITIZEN | CLU026 | 15.0 | 25.4 | 91.5 | 12.1 | ||||
| CITIZEN | CLU713 | 15.2 | 24.9 | 87.3 | 10.7 | 0.8 | |||
| CITIZEN | CLU713 TYPE-F | 15.9 | 25.7 | 91.3 | 10.9 | 1.6 | |||
| CITIZEN | CLU720 | 16.5 | 28.2 | 90.8 | 9.7 | ||||
| CITIZEN | CLU02Q TYPE-Y | 17.1 | 28.1 | 88.4 | 8.9 | 0.5 | |||
| CITIZEN | CLU721 | 18.0 | 15.6 | 30.2 | 42.5 | 87.1 | 7.4 | 4.4 | 1.0 |
| CITIZEN | CLU731 | 20.3 | 39.7 | 85.1 | 5.0 | 1.0 | |||
| CITIZEN | CLU03Q TYPE-Y | 23.4 | 43.1 | 85.4 | 4.0 | 0.8 | |||
| CITIZEN | CLU03Q TYPE-F | 25.7 | 41.6 | 90.8 | 4.2 | 1.0 | |||
| CREE | XP-LR | 4.5 | 9.6 | 83.5 | 71.7 | 3.2 | |||
| CREE | XP-E2 | 4.9 | 10.8 | 83.2 | 58.4 | 2.0 | |||
| CREE | XP-G4 HI | 5.7 | 10.8 | 87.4 | 57.2 | 3.8 | |||
| CREE | XP-GR | 5.8 | 10.1 | 87.6 | 63.2 | 2.2 | |||
| CREE | XHP50.3 HI | 6.2 | 12.4 | 86.7 | 46.6 | ||||
| CREE | XP-G2 HE | 6.4 | 12.3 | 83.7 | 44.1 | 3.5 | |||
| CREE | XM-L2 | 7.0 | 14.4 | 85.0 | 36.2 | 10.9 | |||
| CREE | XHP35.2 HI | 8.5 | 16.0 | 86.8 | 31.3 | ||||
| CREE | XHP35.2 HD | 8.8 | 16.0 | 91.8 | 28.1 | ||||
| CREE | CMA1303 | 8.8 | 15.8 | 89.4 | 28.6 | ||||
| CREE | XHP70.3 HI | 9.7 | 17.5 | 83.2 | 22.4 | 1.5 | |||
| CREE | CXB 1310 | 11.9 | 25.2 | 21.8 | 52.7 | 88.8 | 15.7 | 2.8 | 0.7 |
| CREE | XHP70.2 | 12.4 | 21.1 | 92.8 | 17.2 | ||||
| CREE | CXA 1520 | 13.7 | 22.4 | 91.5 | 14.3 | ||||
| CREE | CXB 1520 | 14.0 | 22.6 | 87.6 | 13.3 | ||||
| CREE | CXB 1507 | 14.7 | 24.1 | 91.4 | 12.5 | ||||
| CREE | CXA 1507 | 15.0 | 24.3 | 91.8 | 12.3 | ||||
| CREE | CMB1818 | 19.4 | 17.0 | 39.1 | 49.6 | 84.5 | 5.2 | 3.0 | 0.8 |
| CREE | CXA 1830 | 21.3 | 40.7 | 89.4 | 4.9 | 1.0 | |||
| CREE | CMU1532 | 22.6 | 19.1 | 42.6 | 52.4 | 85.4 | 4.2 | 2.5 | 0.7 |
| LUMILEDS | LUXEON Z ES | 4.9 | 10.3 | 82.9 | 63.0 | 2.4 | |||
| LUMILEDS | LUXEON Z CLUSTER X4 TUNABLE WHITE | 7.8 | 13.9 | 90.7 | 34.5 | 1.4 | |||
| LUMILEDS | LUXEON COB 109 | 10.7 | 18.5 | 93.4 | 21.9 | ||||
| LUMILEDS | LUXEON 7070 | 11.2 | 19.9 | 86.2 | 17.6 | 2.0 | |||
| LUMILEDS | LUXEON COB 1202S | 11.4 | 19.5 | 93.3 | 20.0 | ||||
| LUMILEDS | LUXEON_CX_PLUS_COB_S01 (GEN2) | 11.5 | 26.9 | 21.1 | 53.2 | 91.1 | 17.1 | 2.7 | 1.0 |
| LUMILEDS | LUXEON_CX_PLUS_COB_M02 (GEN2) | 14.7 | 22.3 | 28.8 | 52.1 | 87.8 | 9.4 | 2.7 | 0.9 |
| LUMILEDS | LUXEON_CX_PLUS_COB_L04 (GEN2) | 18.1 | 18.3 | 35.3 | 51.0 | 87.0 | 6.3 | 2.9 | 1.3 |
| LUMINUS | SST-12 | 5.1 | 9.5 | 88.0 | 71.1 | 7.6 | |||
| LUMINUS | SST-40 | 6.1 | 12.2 | 86.5 | 48.9 | 5.8 | |||
| LUMINUS | CXM_3 | 9.2 | 18.5 | 91.3 | 23.2 | 1.8 | |||
| LUMINUS | CXM_9 | 14.3 | 25.8 | 11.6 | |||||
| LUMINUS | CTM_9 | 14.9 | 26.2 | 93.9 | 11.0 | ||||
| LUMINUS | CXM_14 | 20.4 | 38.8 | 90.1 | 5.4 | ||||
| NICHIA | NVSW219CT-V2 | 4.9 | 10.9 | 90.5 | 62.1 | 1.8 | |||
| NICHIA | NVSW719AC | 5.9 | 12.5 | 83.6 | 47.6 | 2.0 | |||
| NICHIA | NJNWS012Z_V1MT | 10.0 | 18.2 | 93.7 | 23.6 | 1.8 | |||
| NICHIA | NVNWS007Z_V1 | 10.2 | 17.7 | 93.8 | 24.7 | ||||
| NICHIA | NTCWT012B_V3 | 10.3 | 17.9 | 91.2 | 22.0 | ||||
| NICHIA | NTCWS024B_V3 | 11.0 | 20.1 | 90.9 | 18.6 | ||||
| NICHIA | NTCLS024B_V1 | 11.4 | 19.4 | 93.7 | 20.2 | ||||
| NICHIA | NJCWS024Z_V1 | 11.9 | 20.1 | 92.6 | 18.3 | ||||
| NICHIA | NJCLS024Z | 11.9 | 20.9 | 93.0 | 17.8 | ||||
| NICHIA | NFCWL036B_V3 | 14.0 | 23.8 | 90.8 | 12.6 | ||||
| NICHIA | NVEWL016Z_V1 | 14.3 | 24.0 | 12.4 | |||||
| NICHIA | NVCWL024Z_V1 | 19.6 | 27.7 | 90.4 | 9.5 | ||||
| NICHIA | NVEWJ048Z_V1 | 21.8 | 37.7 | 5.3 | |||||
| OSRAM | OSLON COMPACT CM LUW CEUN.CE | 3.3 | 6.0 | 94.1 | 188.8 | ||||
| OSRAM | OSTAR PROJECTION COMPACT KW CSLNM1.TG | 3.5 | 6.3 | 92.5 | 158.8 | ||||
| OSRAM | OSLON BOOST HM KW CELMM1.TG | 4.0 | 9.0 | 92.7 | 92.3 | 3.0 | |||
| OSRAM | OSLON COMPACT CL LUW CEUP | 4.6 | 8.1 | 90.2 | 99.8 | ||||
| OSRAM | OSLON COMPACT PL KW CELNM2.TK | 4.6 | 9.1 | 67.8 | 64.6 | 1.2 | |||
| OSRAM | OSLON SQUARE GW CSSRM3.PM | 4.7 | 8.8 | 94.1 | 93.8 | ||||
| OSRAM | OSLON PURE 1010 GW VJLPE1 EM | 5.1 | 8.3 | 90.3 | 88.5 | ||||
| OSRAM | OSLON SSL 150 GW CSHPM1.EM | 5.4 | 11.6 | 86.6 | 53.6 | 3.9 | |||
| OSRAM | OSCONIQ P3737 GW PUSRA1.EM | 5.5 | 11.5 | 88.7 | 59.2 | ||||
| OSRAM | SOLERIQ S9 | 15.2 | 17.7 | 92.2 | 11.8 | ||||
| OSRAM | OSLON SQUARE GW CSSRMU.CM | 28.7 | 56.0 | 73.7 | 2.1 | 2.2 | |||
| SAMSUNG | LC010CV2 | 10.2 | 18.3 | 91.0 | 23.3 | ||||
| SEOUL | SAWS0661A | 9.8 | 17.9 | 91.4 | 23.2 | ||||
| SEOUL | SAWS1063A | 15.6 | 25.9 | 89.0 | 10.5 | ||||
| XICATO | XOB06 | 9.7 | 15.9 | 87.6 | 25.8 | ||||
| XICATO | XOB 9 | 14.5 | 27.9 | 72.4 | 8.4 | ||||
| XICATO | XTM & XIM 9MM | 14.8 | 28.6 | 87.8 | 9.7 |
Compatible accessories:
In the same family:
Find the right product for your needs
Our range of standard collimators is the result of many years of experience in the market for custom optical components. It has developed naturally in the face of constantly changing market requirements: the search for the best possible compromise between quality, reliability and cost reduction. Our collimators can be adapted to different fields of application such as automotive, medical, general lighting fixtures and light indicators on domestic devices.
Thanks to a very wide range of products, we can meet most of the technical requirements and specifications for optical solutions.
Let us guide you through our search engine; enter a reference, a material, a brand or a type of LED, characteristics of size, diameter, zoom or color mixing requirements and find the optical part adapted to your needs among the selection that is proposed to you.
Optical solutions: the result of many years of experience
GAGGIONE leverages its extensive experience and resources to provide complete capabilities throughout the design process of custom parts and optical systems. The standard range of optics is the result of a long history in the field of custom optical components. It has grown in response to constantly changing market requirements and rapid time-to-market and continues to be one of the exciting activities that GAGGIONE is used to shape its customers’ light.
