Ref:

LLS66ZCLV02

Zoom Set

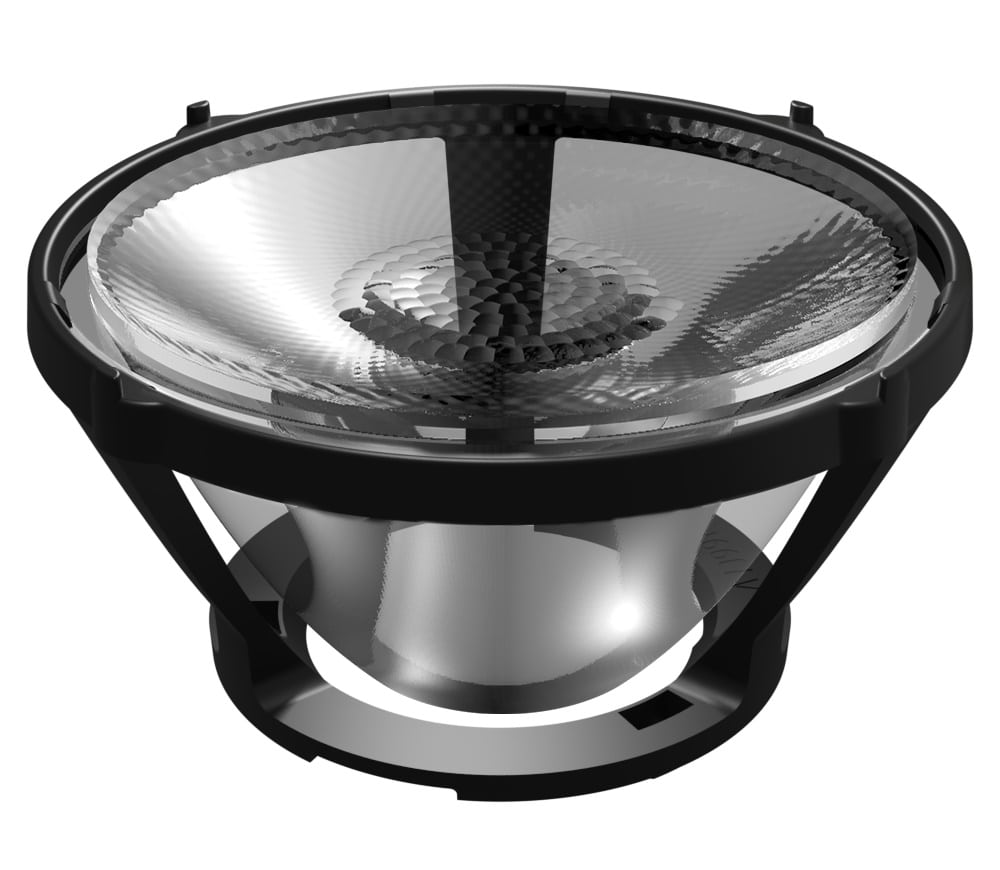

Ø 67 mm narrow beam collimator LLC66Z7 + black holder

More details :

Assembled set made of the Ø 67 mm narrow beam collimator LLC66Z7 and a black holder specially dedicated to integrate M2M dynamic beam shaping lense of LensVector.
Gaggione and LensVector have collaborated to develop a precision mechanical coupling system that brings together the highest performance of LLC66Z7 67mm narrow beam collimating optic of Gaggione with 65mm M2M liquid crystal lens of LensVector. This complete. modular drop in optical system solution enables digital control from the narrowest beam of light to the widest flood without mechanical intervention. This combined solution can be applied to COBs and to the newest high-density LED arrays for smaller high-performance track fixtures and downlights that are used in demanding commercial lighting applications.

All the measurements and LED compatibilities can be found on the collimator webpage.
For more information. watch the video about LLC66x7 integrated solution.
Download the leaflet.
Picture might not reflect the right collimator being part of this set. Please check dedicated 2D drawing and 3D drawings.
Important : bases* are mandatory for integration and are sold separately.
Discover how to choose the right holder.
