Dimensions : 32x18mm
Narrow Collimator
~15° Narrow Collimator
Ø 35mm PMMA collimator
More details :

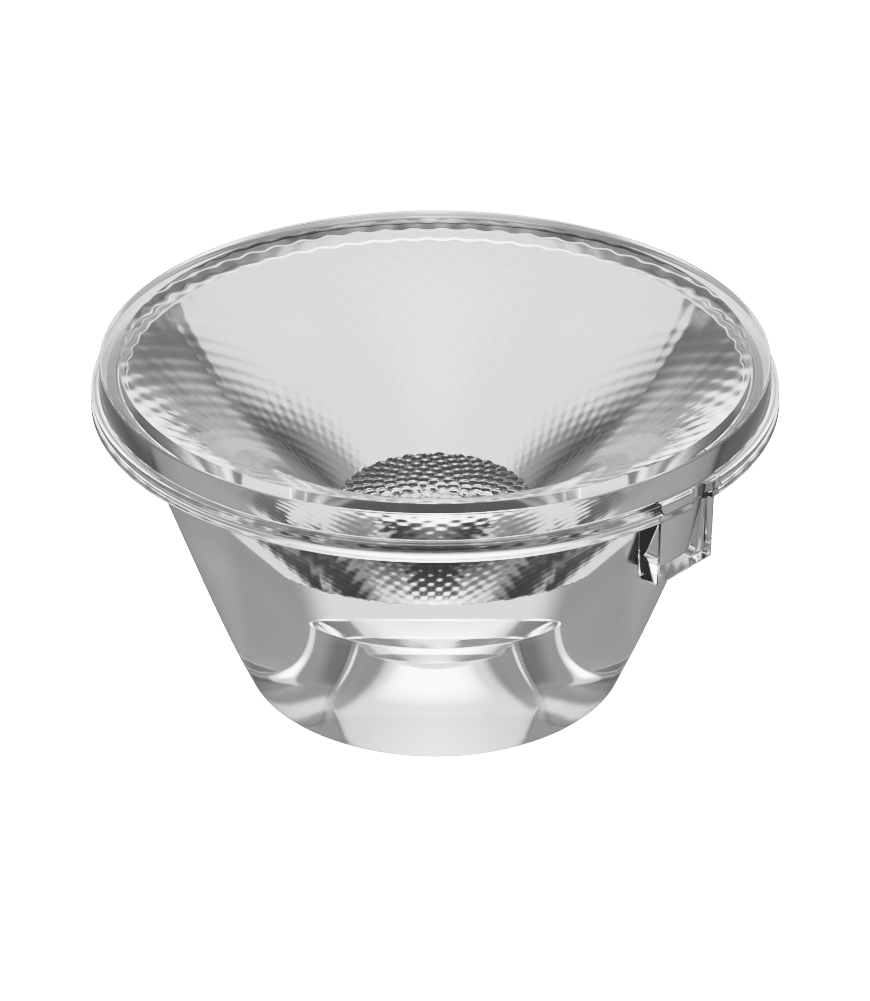

HADAR35N is a Ø 32.7 mm (⌀ 35 mm with holder), ~15° (FWHM) Narrow beam PMMA collimator. Diamond turned optic provides industry’s highest efficiency and efficacy with smooth cut-off and extremely low surface brightness.
HADAR35N has typical efficiency of 92 % and is optimized for 2.4mm – 6mm LES COBs and compatible with up to 10mm LES COBs.

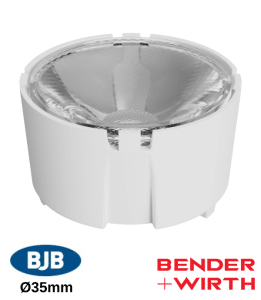

See HADAR35 holder options to find suitable holder for integrating the part with Bender+Wirth and BJB35 solderless connectors.
See also HADAR35 leaflet or download full Datasheet.
Refine your search:
Please select a unique LED reference to list compatible holders and photometrics results
Compatibility Click on a unique LED reference to access the .ies and .ldt files.
| LED Manufacturer | LED Reference | FWHM 1 | FWHM 2 | FWTM 1 | FWTM 2 | LOR | Efficacy 1 | Efficacy 2 | CCI |
|---|---|---|---|---|---|---|---|---|---|

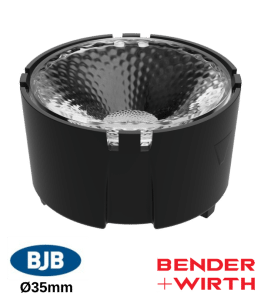

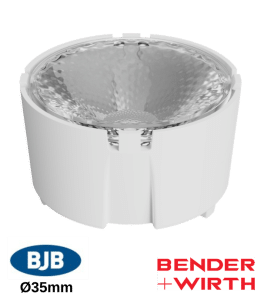

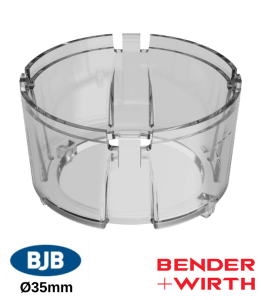

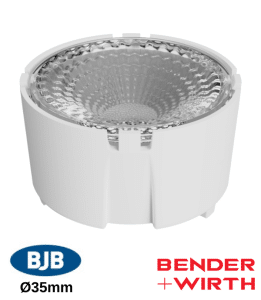

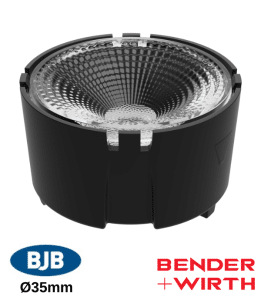

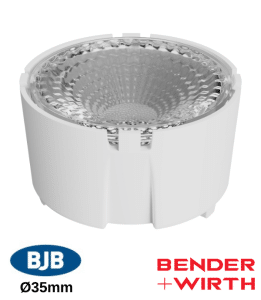

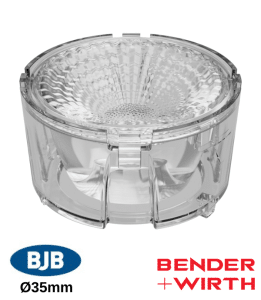

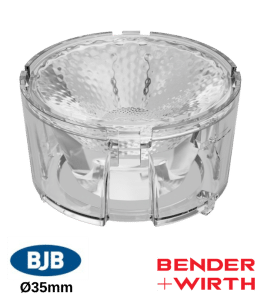

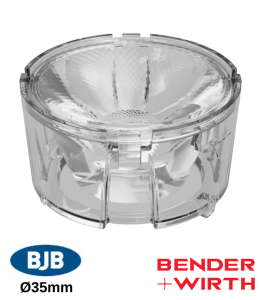

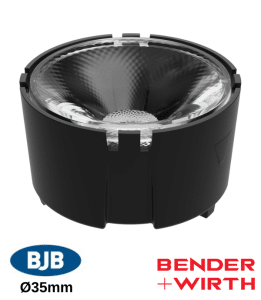

Compatible holders:

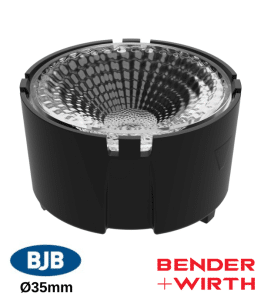

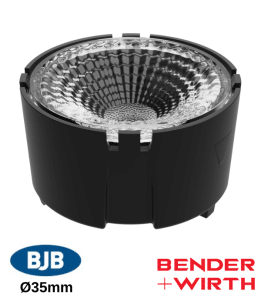

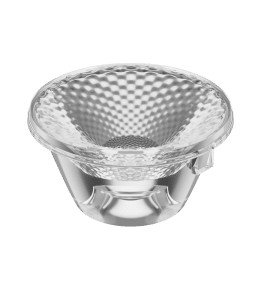

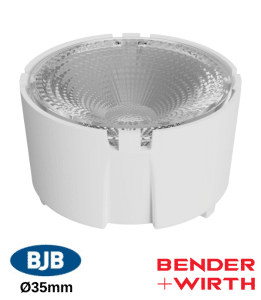

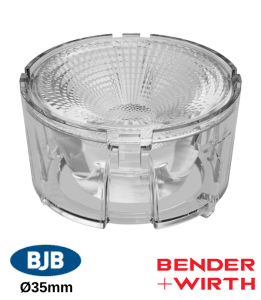

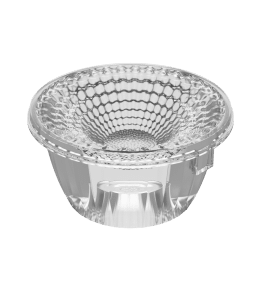

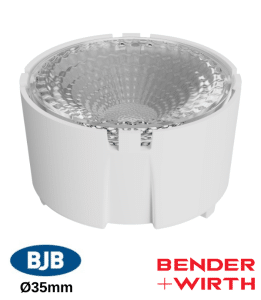

In the same family:
Find the right product for your needs
Our range of standard collimators is the result of many years of experience in the market for custom optical components. It has developed naturally in the face of constantly changing market requirements: the search for the best possible compromise between quality, reliability and cost reduction. Our collimators can be adapted to different fields of application such as automotive, medical, general lighting fixtures and light indicators on domestic devices.
Thanks to a very wide range of products, we can meet most of the technical requirements and specifications for optical solutions.
Let us guide you through our search engine; enter a reference, a material, a brand or a type of LED, characteristics of size, diameter, zoom or color mixing requirements and find the optical part adapted to your needs among the selection that is proposed to you.
Optical solutions: the result of many years of experience
GAGGIONE leverages its extensive experience and resources to provide complete capabilities throughout the design process of custom parts and optical systems. The standard range of optics is the result of a long history in the field of custom optical components. It has grown in response to constantly changing market requirements and rapid time-to-market and continues to be one of the exciting activities that GAGGIONE is used to shape its customers’ light.
