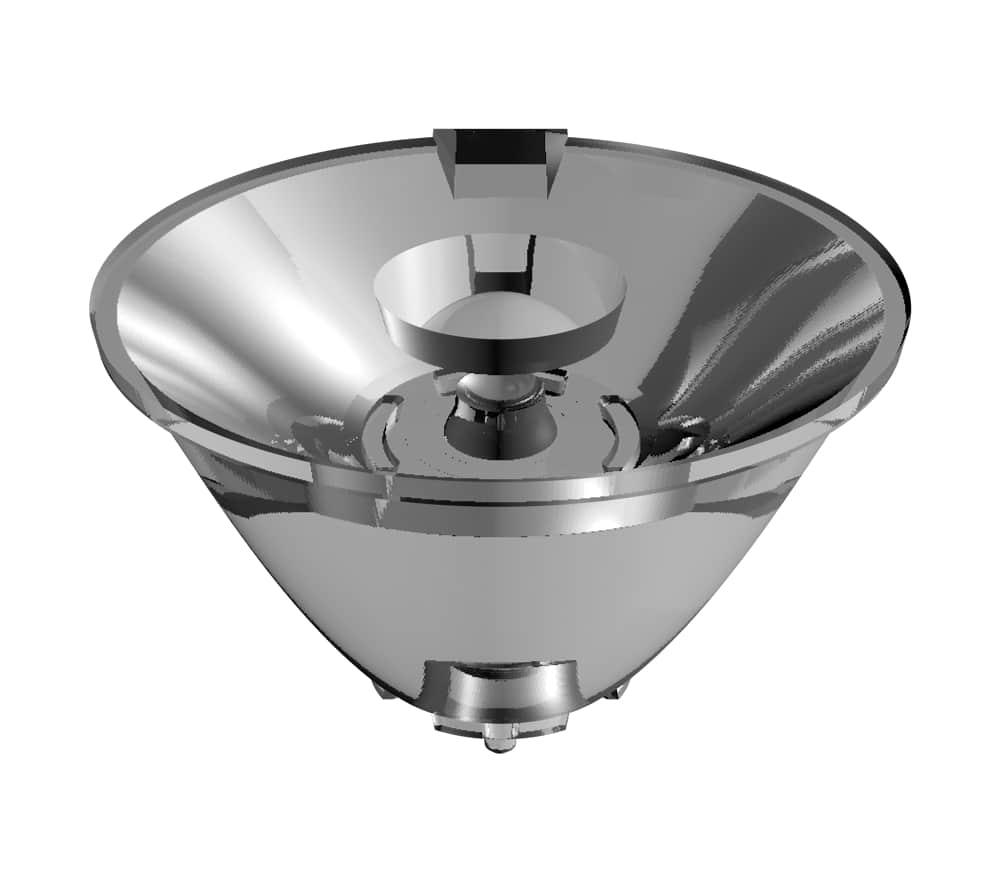

Ø 45 mm ultra narrow beam PMMA collimator.
More details :
LLC49U is a Ø 45 mm ultra narrow beam PMMA collimator. It is capable of a less than 5° beam angle with high power LED. It will fit perfectly long range and search light applications. It will alos provide great results for transportation oriented lighting purposes.
All of our PMMA based references can also be manufactured out of Polycarbonate (PC). Please contact us for more details.
Discover how to choose the right holder.
Refine your search:
Please select a unique LED reference to list compatible holders and photometrics results
Compatibility Click on a unique LED reference to access the .ies and .ldt files.
| LED Manufacturer | LED Reference | FWHM 1 | FWHM 2 | FWTM 1 | FWTM 2 | LOR | Efficacy 1 | Efficacy 2 | CCI |
|---|---|---|---|---|---|---|---|---|---|
| CREE | XP-GR | 2.9 | 6.4 | 84.7 | 179.5 | 1.6 | |||
| CREE | XP-P | 3.2 | 5.4 | 87.7 | 226.2 | 1.5 | |||
| CREE | XQ-E HI | 3.3 | 5.5 | 91.5 | 224.2 | ||||
| CREE | XD16 PREMIUM WHITE | 3.6 | 8.1 | 89.2 | 122.7 | 4.0 | |||
| CREE | XD16 | 3.7 | 9.5 | 95.7 | 87.5 | ||||
| CREE | XP-E2 | 3.7 | 6.4 | 90.6 | 153.3 | 2.3 | |||
| CREE | XP-LR | 3.8 | 7.9 | 88.0 | 123.6 | 1.5 | |||
| CREE | XP-G4 HI | 4.1 | 8.9 | 92.5 | 94.9 | 6.8 | |||
| CREE | XP-L HI | 5.6 | 10.3 | 91.1 | 64.5 | 5.4 | |||
| CREE | XPL-HI_POST_PCN5155 | 5.6 | 10.8 | 87.1 | 58.9 | 5.8 | |||
| CREE | XP-G4 | 5.7 | 10.0 | 94.6 | 69.5 | 2.1 | |||
| CREE | XP-G3 | 6.5 | 11.6 | 97.6 | 52.0 | ||||
| CREE | XP-G2 HE | 6.6 | 11.6 | 92.2 | 53.5 | 4.9 | |||
| CREE | XHP35 HI | 6.7 | 11.3 | 94.3 | 56.7 | ||||
| CREE | XHP35.2 HI | 7.6 | 13.1 | 89.6 | 40.4 | 3.4 | |||
| CREE | XHP50.3 HI | 7.9 | 14.8 | 89.4 | 33.6 | 7.6 | |||
| CREE | XM-L2 | 8.5 | 13.1 | 89.0 | 37.0 | 2.3 | |||
| CREE | XP-L2 | 8.8 | 14.7 | 98.8 | 32.2 | ||||
| CREE | XHP35.2 HD | 9.8 | 18.7 | 95.9 | 20.5 | ||||
| CREE | XHP50.2 | 11.6 | 22.6 | 94.8 | 14.7 | ||||
| CREE | XHP50 | 12.0 | 21.7 | 94.3 | 14.4 | ||||
| CREE | XHP50.3 HD | 12.7 | 19.8 | 90.0 | 16.2 | 4.9 | |||
| CREE | XHP70.3 | 13.6 | 26.4 | 89.0 | 9.2 | 1.9 | |||
| LUMILEDS | LUXEON Z ES | 4.2 | 8.9 | 84.7 | 90.7 | 0.9 | |||
| LUMILEDS | LUXEON MZ | 7.9 | 15.6 | 95.2 | 30.7 | ||||
| LUMINUS | SST-12 | 4.1 | 7.3 | 93.2 | 138.9 | 1.3 | |||
| LUMINUS | SFT-40 | 5.0 | 9.3 | 90.5 | 89.2 | 2.0 | |||
| LUMINUS | SST_20_WXS | 5.1 | 8.1 | 93.0 | 97.8 | ||||
| LUMINUS | SST_20_WXH | 5.1 | 7.9 | 93.2 | 108.9 | ||||
| LUMINUS | SFT-70 | 7.1 | 11.9 | 92.9 | 48.6 | 1.1 | |||
| LUMINUS | SST-40 | 7.6 | 12.2 | 88.3 | 43.0 | 1.6 | |||
| LUMINUS | SST-70 | 10.1 | 15.8 | 94.2 | 25.7 | 1.1 | |||
| NICHIA | NFSWE11A | 3.1 | 4.3 | 84.7 | 332.2 | ||||
| NICHIA | NVSLE21AT | 4.0 | 10.9 | 84.2 | 67.4 | 3.8 | |||
| NICHIA | NVSW219CT-V2 | 4.4 | 7.8 | 91.6 | 112.2 | 1.7 | |||
| NICHIA | NVSW719AC | 5.6 | 9.3 | 90.8 | 76.2 | 1.8 | |||
| NICHIA | NVSL219C | 6.3 | 12.4 | 97.5 | 50.7 | ||||
| NICHIA | NVSW219F_V1 | 6.7 | 10.3 | 93.2 | 63.3 | ||||
| NICHIA | NVSW319A | 6.9 | 14.5 | 97.9 | 41.3 | ||||
| NICHIA | NWSL229A | 8.3 | 16.3 | 96.4 | 30.5 | ||||
| NICHIA | NVSW519A | 8.5 | 13.3 | 92.0 | 40.1 | ||||
| NICHIA | NV4WB35AM | 8.9 | 14.5 | 89.0 | 29.2 | ||||
| NICHIA | NV4L144AR | 11.9 | 20.9 | 97.7 | 16.9 | ||||
| OSRAM | OSLON BOOST HM KW CELMM1.TG | 2.0 | 4.0 | 89.8 | 434.0 | 4.4 | |||
| OSRAM | OSLON COMPACT CL LUW CEUP | 2.4 | 6.3 | 85.8 | 201.2 | ||||
| OSRAM | OSLON COMPACT PL KW CELNM2.TK | 2.5 | 5.8 | 74.9 | 187.7 | 2.7 | |||
| OSRAM | OSLON BLACK FLAT LUW HWQP | 2.9 | 6.8 | 89.4 | 176.3 | ||||
| OSRAM | OSLON SSL 150 GW CSHPM1.EM | 3.5 | 6.8 | 87.0 | 152.5 | 1.6 | |||
| OSRAM | OSLON BOOST HX KW CULPM1.TG | 3.8 | 6.8 | 88.1 | 155.8 | ||||
| OSRAM | OSLON SQUARE GW CSSRM1.PC | 5.0 | 10.4 | 97.6 | 67.7 | ||||
| OSRAM | OSLON SQUARE GW CSSRM1.BM | 5.0 | 9.0 | 90.2 | 82.0 | 1.5 | |||
| OSRAM | OSCONIQ P3737 GW PUSRA1.EM | 5.0 | 11.6 | 93.3 | 66.5 | ||||
| OSRAM | OSLON SQUARE GW CSSRM2.PM | 5.3 | 11.8 | 98.1 | 63.2 | ||||
| OSRAM | OSLON SQUARE GW CSSRMU.CM | 5.4 | 9.5 | 90.4 | 78.8 | ||||
| OSRAM | OSCONIQ P3737 GW PULTA1.CM | 5.5 | 14.5 | 88.5 | 41.7 | ||||
| OSRAM | OSLON SQUARE GW CSSRM3.PM | 5.8 | 10.2 | 74.2 | 62.5 | ||||
| OSRAM | OSCONIQ P3737 GW PUSTA1.PM | 7.7 | 13.4 | 90.1 | 39.7 | ||||
| OSRAM | DURIS S8 P9LT32.PM | 11.4 | 21.5 | 93.8 | 16.7 | ||||
| SEOUL | Z5M4 | 6.8 | 12.4 | 94.5 | 52.0 |
