Ref:

VEGA45E1

Elliptical Collimator

45mm COB-oriented collimator in PC

More details :

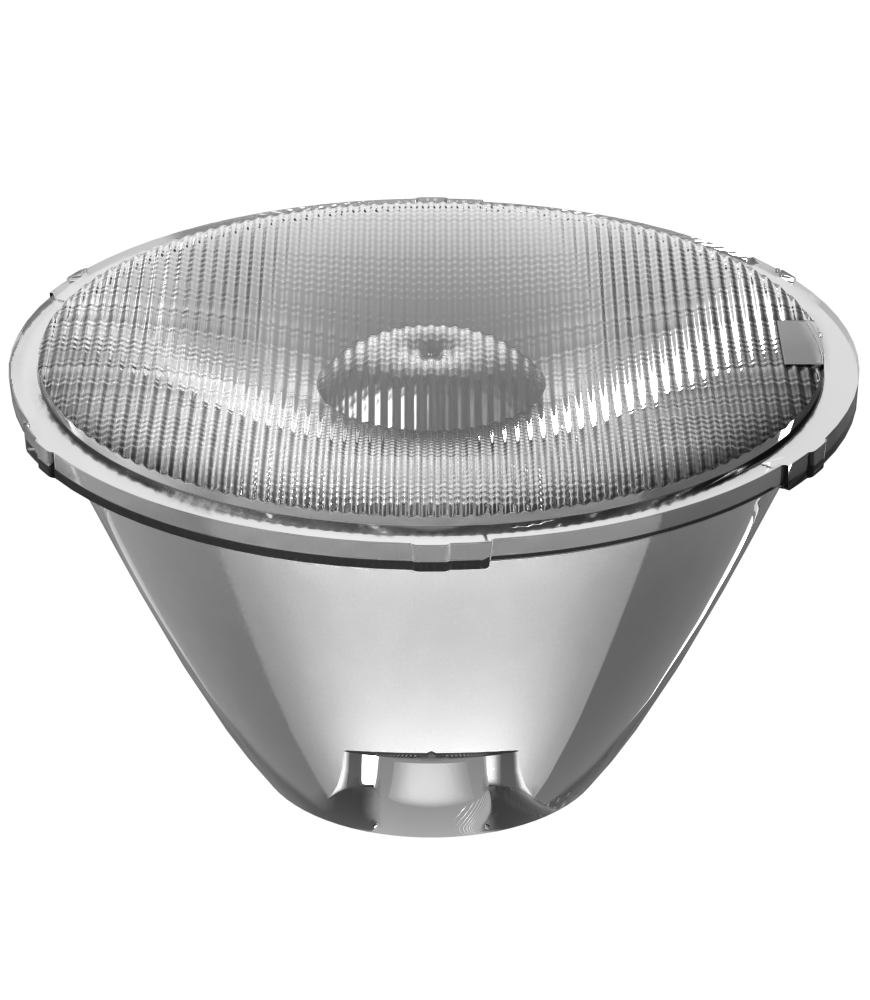

VEGA45E1 is a Ø 45mm COB-oriented collimator in PC.
VEGA45E1 is designed to provide a 8.8-33.1° elliptical beam with a good color mixing compromise especially for long range applications. Being based on a non-chip imaging technology. it will also work with static white COB providing a very sharp. almost linear light ray.

Discover also the PMMA version : the VEGA45E
You can also buy our sets assembled with a black holder. SVEGA45E102 or clear. SVEGA45E100 .

A technical question ? Consult the VEGA datasheet
Discover how to choose the right holder.

Refine your search:

LED Manufacturer

LED Type

LED Reference

Please choose LED Type first

Light Emitting Surface

mm diameter array

mm² surface

Dome

Yes

Measured results in black Simulated results in blue

Compatibility

LED Manufacturer	LED Reference	FWHM 1	FWHM 2	FWTM 1	FWTM 2	Efficacy 1	CCI
	CLU02Q Type-F	21.9	37.6	39.3	69.4	2.5	0.9
BRIDGELUX	V4_HD BXRH_30G0600_A_72	10.1	45.1	18.1	61.7	5.6
BRIDGELUX	V6 BXRE_30E0400_A_03	12.3	44.3	22.1	63.9	4.5
BRIDGELUX	V3_HD_GEN_8	12.6		23.4		7.2	2.3
BRIDGELUX	V6 HD BXRH_40E1000_B_73	13.4	43.2	23.7	65.4	4.1
BRIDGELUX	VESTA 6 TW BXRV-TR-2765G-060-B-23	14.2	38.2	26.0	60.2	4.4	2.6
CITIZEN	CLU7L3	7.6	40.4	14.2	52.3	8.5	3.3
CITIZEN	CLU7B2	8.7	46.1	16.0	60.0	6.6
CITIZEN	CLU7S3	9.1	39.8	16.5	54.0	7.0	2.6
CITIZEN	CLU7A2	10.2	45.1	18.8	61.9	5.4
CITIZEN	CLU7R3	10.3	39.5	18.8	55.7	6.0	3.1
CITIZEN	CLU7A3 Type-F	11.4	37.7	21.0	55.0	5.6	1.9
CITIZEN	CLU702	13.7	43.7	24.5	65.5	3.8
CITIZEN	CLU700	13.8	43.7	23.8	65.4	4.0
CITIZEN	CLU701	13.9	43.8	23.8	65.6	3.9
CITIZEN	CLU703 Type-F	14.9	38.3	26.3	60.5	4.1	1.4
CITIZEN	CLU710	17.2	42.1	30.2	69.5	2.9
CITIZEN	CLU711	17.2	42.2	30.6	69.6	2.7
CITIZEN	CLU712	17.6	42.0	31.2	69.8	2.8
CITIZEN	LCN-C01B2	18.5	37.0	35.7	65.7	2.5	2.7
CITIZEN	CLU713 Type-F	19.5	37.4	34.4	65.9	2.9	1.6
CREE	XP-G4	8.1	40.5	16.2	53.5	7.8	3.3
CREE	XHP35.2 HI	8.4	40.6	16.4	54.0	6.8	3.5
CREE	CXA 13XX	11.8	43.6	22.2	63.9	4.4
CREE	XHP50.3 HI	12.3	39.4	22.5	57.7	5.3	2.3
CREE	CXB 1310	13.5	38.2	24.9	59.6	4.4	1.3
CREE	XHP70.3 HI	14.8	42.6	26.5	67.1	3.7
CREE	XHP70.3	15.4	37.8	28.9	60.8	4.0	2.1
CREE	XHP50.3 HD	15.8		28.5		5.3	2.5
CREE	CXA 1507	16.1	41.5	29.8	67.9	2.8
CREE	CXA 1520	16.3	41.8	29.7	68.3	2.8
CREE	CXB 1507	17.7	42.2	31.6	70.0	2.7
CREE	CXB 1520	18.2	37.8	34.6	67.0	2.6	1.2
LUMILEDS	LUXEON_CX_PLUS_CoB_HDS01H04	11.4	44.9	20.2	63.0	4.9
LUMILEDS	LUXEON_CX_PLUS_CoB_HDS01H06	12.9	44.2	23.6	64.9	4.1
LUMILEDS	LUXEON_CX_PLUS_CoB_HDM02F09	16.9	42.8	30.5	68.7	2.9
LUMILEDS	LUXEON COB 1202	17.8	41.6	31.6	69.9	2.7
LUMILEDS	LUXEON_CX_PLUS_CoB_HDS04H09	18.9	42.0	32.9	71.2	2.5
LUMILEDS	LUXEON_CX_PLUS_COB_HD	18.9	42.0	32.7	71.4	2.5
LUMINUS	SST-40	8.3	37.7	15.6	52.6	7.5	2.5
LUMINUS	CXM_3	9.9	38.5	18.3	54.6	6.1	1.9
LUMINUS	CXM_4	10.9	44.7	19.5	62.0	5.0
LUMINUS	CXM_6	14.1	35.1	25.9	57.1	4.3	1.5
LUMINUS	CXM_9	20.0	41.8	34.9	72.5	2.2
NICHIA	NVSW719AC	7.8	41.0	14.9	53.1	7.9	2.6
NICHIA	NVNWS007Z_V1	12.6	44.3	23.1	64.7	4.2
NICHIA	NJNWS012Z_V1MTE	12.7	34.7	23.8	54.7	4.9	2.3
NICHIA	NTCWT012B_V3	13.5	44.1	23.6	64.8	4.0
NICHIA	NTCWS024B_V3	14.4	42.6	25.8	66.0	3.7
NICHIA	NJCWS024Z_V1	14.9	42.7	26.8	67.3	3.5
NICHIA	NFCWL036B_V3	17.4	41.9	30.4	69.3	2.9
NICHIA	NVEWL016Z_V1	17.4	41.9	31.5	69.9	2.8
XICATO	XTM & XIM 9MM	18.2	37.4	33.8	65.6	2.8	2.1

View results

Compatible accessories:

Please select a unique LED reference
