Ref:

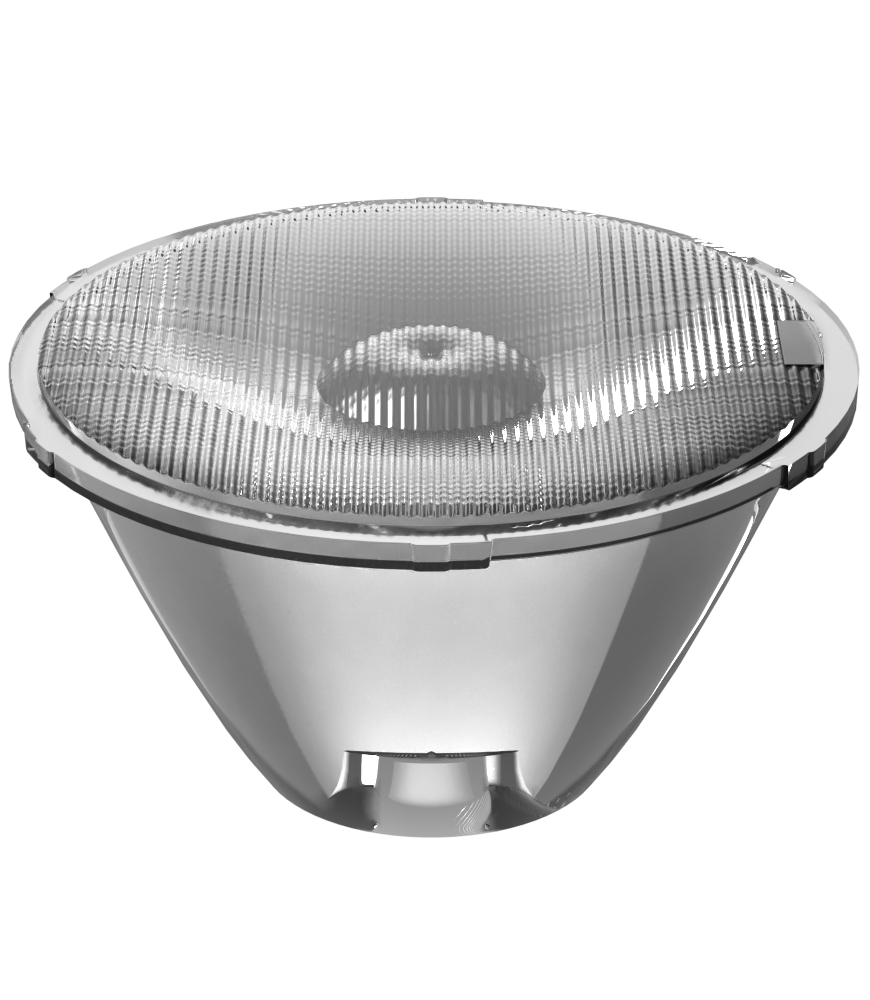

VEGA45E

Elliptical Collimator

45mm COB-oriented collimator in PMMA

More details :

VEGA45E is a Ø 45mm COB-oriented collimator in PMMA. VEGA45E is designed to provide a 8.8-33.1° elliptical beam with a tunable white mixing compromise especially for long range applications. Being based on a non chip imaging technology. it will also work with static white COB providing a very sharp. almost linear light ray.

Discover also the PC version : the VEGA45E1
You can also buy our sets assembled with a black holder. SVEGA45E02 or clear. SVEGA45E00 .

A technical question ? Consult the VEGA datasheet
Discover how to choose the right holder.

Refine your search:

LED Manufacturer

LED Type

LED Reference

Please choose LED Type first

Light Emitting Surface

mm diameter array

mm² surface

Dome

Yes

Measured results in black Simulated results in blue

Compatibility

LED Manufacturer	LED Reference	FWHM 1	FWHM 2	FWTM 1	FWTM 2	Efficacy 1	CCI
	CLU02Q Type-F	21.0	31.9	37.8	60.1	3.1	0.9
BRIDGELUX	V3_HD_GEN_8	9.5	21.5	17.1	36.1	8.8	1.9
BRIDGELUX	V4_HD BXRH_30G0600_A_72	9.6	35.4	16.4	49.3	7.4
BRIDGELUX	V6 HD BXRH_40E1000_B_73	12.2	34.9	22.0	53.3	5.3
BRIDGELUX	VESTA 6 TW BXRV-TR-2765G-060-B-23	13.4	32.4	23.7	51.0	5.4	2.6
CITIZEN	CLU7L3	7.2	33.0	13.2	42.8	10.6	4.6
CITIZEN	CLU7B2	7.9	35.4	14.1	47.1	9.0
CITIZEN	CLU7S3	8.8	33.1	15.7	44.9	8.7	3.1
CITIZEN	CLU7A2	9.7	35.3	17.2	49.7	7.1
CITIZEN	CLU7R3	9.9	33.0	17.7	46.3	7.4	3.6
CITIZEN	CLU7A3 Type-F	11.2	33.0	20.1	47.9	6.7	1.1
CITIZEN	CLU702	12.8	35.4	22.6	54.2	4.9
CITIZEN	CLU700	12.9	35.1	21.8	53.8	5.2
CITIZEN	CLU701	13.1	35.3	22.0	54.1	5.0
CITIZEN	CLU703 Type-F	14.4	32.6	25.2	51.9	5.0	1.2
CITIZEN	CLU711	15.9	34.4	28.5	57.8	3.5
CITIZEN	CLU712	16.1	34.9	29.4	59.0	3.5
CITIZEN	CLU710	17.1	35.1	28.8	58.1	3.6
CITIZEN	CLU02J	18.1	35.1	32.5	61.1	2.9
CITIZEN	LCN-C01B2	18.4	37.3	35.2	66.2	2.5	1.6
CITIZEN	CLU713 Type-F	18.5	31.9	31.9	56.9	3.7	1.7
CITIZEN	CLU03J	23.9	35.8	74.9	89.6	1.4
CREE	XP-G4	7.6	33.4	14.9	44.7	9.8	1.7
CREE	XHP35.2 HI	8.2	34.1	15.4	45.2	8.5	3.9
CREE	CXA 13XX	11.2	34.5	20.7	52.1	5.8
CREE	XHP50.3 HD	11.5	24.2	20.5	39.4	6.6	2.3
CREE	XHP50.3 HI	12.7	32.9	22.9	50.3	6.0	2.4
CREE	XHP70.3 HI	13.5	34.6	23.9	55.3	4.9
CREE	CXB 1310	14.6	21.0	26.4	37.0	5.5	1.0
CREE	XHP70.3	15.0	32.4	28.1	52.6	4.6	2.4
CREE	CXB 1507	16.3	32.5	30.0	60.0	3.5
CREE	CXA 1507	16.5	34.0	28.8	80.9	3.5
CREE	CXB 1520	17.0	32.5	33.2	57.8	3.2	0.7
CREE	CXA 1520	23.0	34.3	28.7	60.8	3.5
LUMILEDS	LUXEON_CX_PLUS_CoB_HDS01H04	10.5	35.4	18.3	50.7	6.4
LUMILEDS	LUXEON_CX_PLUS_CoB_HDS01H06	12.0	35.1	21.8	53.4	5.4
LUMILEDS	LUXEON_CX_PLUS_CoB_HDM02F09	15.1	35.2	28.7	57.6	3.7
LUMILEDS	LUXEON COB 1202	16.8	33.8	29.7	59.9	3.4
LUMILEDS	LUXEON_CX_PLUS_COB_HD	17.6	34.8	31.0	60.3	3.1
LUMILEDS	LUXEON_CX_PLUS_CoB_HDS04H09	17.6	34.6	30.9	60.2	3.1
LUMINUS	SST_20_WxH	5.2	33.5	9.7	42.5	14.0
LUMINUS	SST_20_WxS	5.4	33.8	9.9	43.1	13.3
LUMINUS	SST-40	7.4	33.1	13.7	43.4	9.8	1.5
LUMINUS	CXM_3	8.8	33.5	16.5	46.2	7.9	1.1
LUMINUS	SST-70	8.8	35.8	15.4	48.1	8.0
LUMINUS	CXM_4	10.1	34.9	17.7	49.9	6.9
LUMINUS	CXM_6	12.7	32.1	22.8	50.1	5.5	1.5
LUMINUS	CXM_9	18.5	33.9	32.9	70.3	2.9
NICHIA	NFSWE11A	4.0	21.6	7.4	40.2	17.2
NICHIA	NVSW219F_V1	6.2	35.0	11.3	44.3	11.6
NICHIA	NVSW519A	7.3	35.3	13.1	46.6	9.5
NICHIA	NVSW719AC	8.6	34.2	15.6	45.9	8.7	1.9
NICHIA	NV4L144AM	11.1	36.6	21.0	53.3	6.3
NICHIA	NVNWS007Z_V1	11.9	35.5	21.3	52.8	5.5
NICHIA	NTCWT012B_V3	12.6	34.8	21.4	53.7	5.4
NICHIA	NJCWS024Z_V1	14.1	38.0	25.4	55.1	4.5
NICHIA	NTCWS024B_V3	14.3	133.2	26.7	54.6	4.7
NICHIA	NJNWS012Z_V1MTE	15.3	17.6	27.9	31.5	6.1	1.6
NICHIA	NVEWL016Z_V1	17.3	34.2	30.2	58.3	3.5
NICHIA	NFCWL036B_V3	17.4	36.0	29.2	64.5	3.7
SEOUL	Z5M4	7.0	35.0	13.2	45.5	10.6
XICATO	XTM & XIM 9MM	17.2	32.3	32.1	56.7	3.4	1.5
