Ø 32 mm asymmetric beam PMMA Collimator
More details :

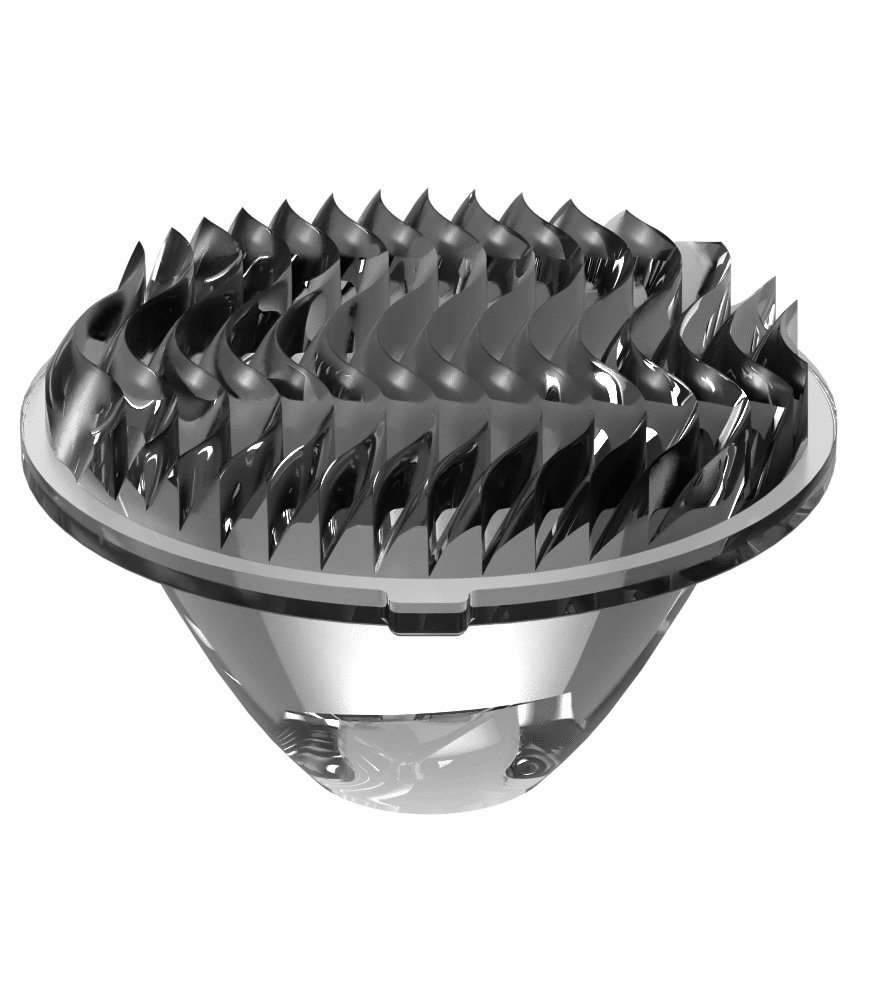

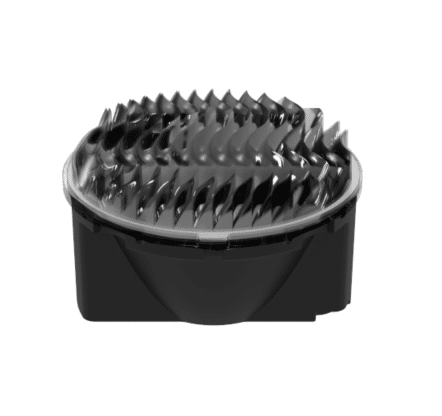

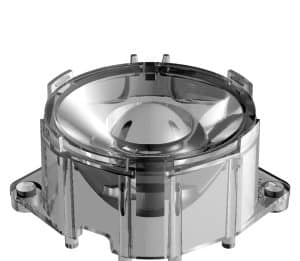

LLC25AF is a Ø 32 mm asymmetric frosted beam PMMA collimator. This is a version without sprue and with an orientation notch. The texture of the LLC25AF is patented. It is a unique concept that allows to obtain a rectangular beam with an excellent light distribution.
Discover how to choose the right lens holder.
(also If you pick a LED from below filtered list, holder suggestions will appear.)
Download full Datasheet.
Refine your search:
Please select a unique LED reference to list compatible holders and photometrics results
Compatibility Click on a unique LED reference to access the .ies and .ldt files.
| LED Manufacturer | LED Reference | FWHM 1 | FWHM 2 | FWTM 1 | FWTM 2 | LOR | Efficacy 1 | Efficacy 2 | CCI |
|---|---|---|---|---|---|---|---|---|---|
| BRIDGELUX | V3_HD_GEN_8 | 87.7 | 1.4 | ||||||
| BRIDGELUX | V4 HD THRIVE BXRH_40S0601_A_72 | 77.1 | 0.9 | 0.7 | |||||
| BRIDGELUX | V4_HD BXRH_30G0600_A_72 | 86.9 | 1.3 | ||||||
| BRIDGELUX | V6 BXRE_30E0400_A_03 | 85.4 | 1.1 | ||||||
| BRIDGELUX | V6 HD BXRH_40E1000_B_73 | 84.7 | 1.0 | ||||||
| BRIDGELUX | V6 HD THRIVE BXRH_40S1001_B_73 | 84.8 | 1.0 | ||||||
| BRIDGELUX | V6 HD THRIVE BXRH_40S1001_G_73 | 84.8 | 1.0 | ||||||
| BRIDGELUX | V10 F90 ARRAY SERIES | 45.4 | 73.0 | 137.9 | 149.1 | 77.9 | 0.5 | 0.8 | |
| CITIZEN | CLU700 | 84.7 | 1.0 | ||||||
| CITIZEN | CLU701 | 84.7 | 1.1 | ||||||
| CITIZEN | CLU702 | 84.4 | 1.0 | ||||||
| CITIZEN | CLU7B2 | 87.8 | 1.4 | ||||||
| CITIZEN | CLU7R3 | 86.6 | 1.3 | ||||||
| CITIZEN | CLU7S3 | 87.4 | 1.4 | ||||||
| CITIZEN | CLU713 | 80.6 | 0.6 | 1.1 | |||||
| CITIZEN | CLU7A3 TYPE-F | 84.4 | 0.9 | 0.6 | |||||
| CITIZEN | CLU713 TYPE-F | 82.1 | 0.6 | 1.3 | |||||
| CITIZEN | CLU703 TYPE-F | 84.0 | 0.8 | 0.7 | |||||
| CITIZEN | CLU7A2 | 82.7 | 0.9 | 1.1 | |||||
| CITIZEN | CLU7L3 | 80.4 | 1.1 | ||||||
| CITIZEN | CLU703 | 80.6 | 0.8 | 0.9 | |||||
| CREE | CMA1303 | 86.6 | 1.1 | ||||||
| CREE | CXA 13XX | 84.9 | 1.0 | ||||||
| CREE | CXB 1310 | 84.8 | 1.1 | ||||||
| CREE | XP-GR | 80.5 | 1.1 | 1.3 | |||||
| CREE | XM-L COLOR GEN 2 HD | 84.2 | 1.1 | 11.5 | |||||
| CREE | XP-L COLOR HI | 81.8 | 1.1 | 8.4 | |||||
| CREE | XM-L COLOR GEN 2 HI | 1.0 | 13.2 | ||||||
| CREE | XB-D | 90.0 | 1.7 | ||||||
| CREE | XD16 PREMIUM WHITE | 90.6 | 1.9 | ||||||
| CREE | XHP35.2 HD | 85.4 | 1.0 | 1.7 | |||||
| CREE | XHP35.2 HI | 88.2 | 1.4 | ||||||
| CREE | XHP50.2 | 85.0 | 1.2 | ||||||
| CREE | XHP50.3 HD | 84.9 | 1.3 | ||||||
| CREE | XHP50.3 HI | 87.3 | 1.3 | ||||||
| CREE | XHP70.2 | 83.5 | 1.0 | ||||||
| CREE | XHP70.3 HI | 85.9 | 1.2 | ||||||
| CREE | XHP70.3 | 85.9 | 1.2 | ||||||
| CREE | XP-E2 | 82.8 | 1.1 | 1.4 | |||||
| CREE | XP-G2 | 89.7 | 1.8 | ||||||
| CREE | XP-G3 | 88.2 | 1.6 | ||||||
| CREE | XP-L HI | 89.8 | 1.7 | ||||||
| CREE | XP-L2 | 87.2 | 1.5 | ||||||
| CREE | XP-P | 84.3 | 1.2 | 1.1 | |||||
| CREE | XPL-HI_POST_PCN5155 | 89.2 | 1.6 | ||||||
| CREE | XQ-E HI | 91.0 | 2.0 | ||||||
| CREE | XQ-E | 91.0 | 2.0 | ||||||
| CREE | XT-E | 88.8 | 1.7 | ||||||
| CREE | XE-G CLUSTER X4 RGBW | 0.9 | 15.8 | ||||||
| CREE | XP-G4 | 1.2 | 2.1 | ||||||
| CREE | XP-L COLOR HD | 83.5 | 1.1 | 12.8 | |||||
| CREE | XM-L2 | 84.0 | 1.1 | 2.1 | |||||
| CREE | XP-G4 HI | 81.7 | 1.1 | 1.5 | |||||
| CREE | XN-P RGBW | 83.5 | 1.2 | 12.8 | |||||
| CREE | XP-LR | 82.5 | 1.2 | 1.3 | |||||
| CREE | CXB 1520 | 78.4 | 0.6 | 0.8 | |||||
| CREE | CHA0304 | 88.1 | 1.5 | ||||||
| CREE | CHA0410 | 86.3 | 1.3 | ||||||
| EDISON | EDISON_2FM004M601F03001 | 83.0 | 1.0 | 15.1 | |||||
| LED ENGIN | LZ1-00CW02 | 89.5 | 1.7 | ||||||
| LED ENGIN | LZC-00CW0R | 83.9 | 0.9 | ||||||
| LED ENGIN | LZ7-04M2PD | 84.7 | 1.0 | 12.5 | |||||
| LUMILEDS | LUXEON Z CLUSTER X4 TUNABLE WHITE | 82.3 | 1.1 | 1.6 | |||||
| LUMILEDS | LUXEON_CX_PLUS_COB_HD_S01H04 | 86.0 | 1.2 | ||||||
| LUMILEDS | LUXEON COB 1202 | 81.4 | 0.7 | ||||||
| LUMILEDS | LUXEON C | 81.4 | 0.7 | ||||||
| LUMILEDS | LUXEON MZ | 88.0 | 1.5 | ||||||
| LUMILEDS | LUXEON REBEL PWC1 | 90.2 | 1.9 | ||||||
| LUMILEDS | LUXEON REBEL PWC2 | 88.9 | 1.7 | ||||||
| LUMILEDS | LUXEON Z | 90.8 | 2.1 | ||||||
| LUMILEDS | LUXEON Z ES | 84.9 | 1.2 | 0.9 | |||||
| LUMILEDS | LUXEON_CX_PLUS_COB_HD_S01H06 | 84.9 | 1.0 | ||||||
| LUMILEDS | LUXEON RUBIX CLUSTER X4 RGBW | 1.2 | 16.8 | ||||||
| LUMILEDS | LUXEON Z CLUSTER X4 RGBW | 85.4 | 1.1 | 14.1 | |||||
| LUMINUS | CXM_3 | 88.2 | 1.5 | ||||||
| LUMINUS | CXM_4 | 86.5 | 1.3 | ||||||
| LUMINUS | CXM_6 | 83.9 | 1.0 | ||||||
| LUMINUS | SFT-40 | 90.2 | 1.8 | ||||||
| LUMINUS | SFT-70 | 89.7 | 1.7 | ||||||
| LUMINUS | SST-12 | 86.3 | 1.2 | 2.6 | |||||
| LUMINUS | SST-70 | 87.5 | 1.5 | ||||||
| LUMINUS | SST_20_WXH | 90.1 | 1.8 | ||||||
| LUMINUS | CXM_9 | 81.3 | 0.6 | ||||||
| LUMINUS | SBM_40_SC | 85.1 | 1.1 | 13.7 | |||||
| LUMINUS | SST-40 | 82.7 | 1.1 | 1.7 | |||||
| LUMINUS | CTM_9 | 73.5 | 0.5 | 1.7 | |||||
| NICHIA | NCSWE17AT | 88.3 | 1.9 | ||||||
| NICHIA | NFSWE11A | 87.7 | 2.0 | ||||||
| NICHIA | NJCWS024Z | 81.8 | 0.9 | ||||||
| NICHIA | NJCWS024Z_V1 | 83.2 | 0.9 | ||||||
| NICHIA | NTCWS024B_V3 | 83.8 | 0.9 | ||||||
| NICHIA | NTCWT012B_V3 | 85.0 | 1.1 | ||||||
| NICHIA | NV4L144AR | 83.9 | 1.2 | ||||||
| NICHIA | NV4WB35AM | 87.9 | 1.5 | ||||||
| NICHIA | NV9W149AM | 81.8 | 0.9 | ||||||
| NICHIA | NVNWS007Z_V1 | 84.7 | 1.1 | ||||||
| NICHIA | NVSL219CT | 87.8 | 1.7 | ||||||
| NICHIA | NVSW119C | 88.0 | 1.7 | ||||||
| NICHIA | NVSW219F_V1 | 88.5 | 1.7 | ||||||
| NICHIA | NVSW319A | 86.7 | 1.6 | ||||||
| NICHIA | NVSW319B | 88.0 | 1.7 | ||||||
| NICHIA | NVSW519A | 86.7 | 1.5 | ||||||
| NICHIA | NVSWE21AT | 88.4 | 1.8 | ||||||
| NICHIA | E17A CLUSTER X4 RGBW | 1.0 | 16.8 | ||||||
| NICHIA | NVSW719AC | 83.0 | 1.1 | 1.0 | |||||
| NICHIA | NV4L144AM | 88.5 | 1.3 | ||||||
| NICHIA | NVSW219CT-V2 | 83.2 | 1.1 | 1.0 | |||||
| NICHIA | NVSLE21AT | 82.0 | 1.1 | 1.0 | |||||
| OSRAM | OSCONIQ C 2424 GW PLLRA1.EM | 90.4 | 1.9 | ||||||
| OSRAM | OSCONIQ P3030 GW QSSPA1.PM | 90.2 | 1.9 | ||||||
| OSRAM | OSCONIQ P3737 GW PUSTA1.PM | 88.3 | 1.5 | ||||||
| OSRAM | OSCONIQ S 3030 GW QSLR31.EM | 89.5 | 1.7 | ||||||
| OSRAM | OSLON BLACK FLAT LUW HWQP | 91.3 | 2.1 | ||||||
| OSRAM | OSLON BOOST HM KW CELMM1.TG | 91.3 | 2.2 | ||||||
| OSRAM | OSLON COMPACT CL LUW CEUP | 91.2 | 2.1 | ||||||
| OSRAM | OSLON COMPACT CM LUW CEUN.CE | 91.4 | 2.2 | ||||||
| OSRAM | OSLON COMPACT PL KW CELNM2.TK | 91.0 | 2.1 | ||||||
| OSRAM | OSLON PURE 1010 GW VJLPE1 EM | 89.1 | 2.0 | ||||||
| OSRAM | OSLON SQUARE FLAT KW CSLPM2.PC | 83.0 | 1.7 | ||||||
| OSRAM | OSLON SQUARE GW CSSRM1.BM | 83.2 | 1.1 | 0.9 | |||||
| OSRAM | OSLON SQUARE GW CSSRM2.PM | 88.2 | 1.7 | ||||||
| OSRAM | OSLON SQUARE GW CSSRM3.PM | 85.7 | 1.7 | ||||||
| OSRAM | OSLON SQUARE GW CSSRMU.CM | 88.6 | 1.7 | ||||||
| OSRAM | OSLON SSL 150 GW CSHPM1.PM | 90.4 | 1.9 | ||||||
| OSRAM | OSLON SSL 80 GW CS8PM1.CM | 89.6 | 1.7 | ||||||
| OSRAM | OSTAR PROJECTION COMPACT KW CSLNM1.TG | 85.4 | 1.2 | 1.2 | |||||
| OSRAM | OSTAR PROJECTION COMPACT KW CSLPM1.TG | 90.8 | 1.9 | ||||||
| OSRAM | OSTAR STAGE LE CWUW S2W | 84.8 | 1.2 | 1.6 | |||||
| OSRAM | PURE 1010 RGBW CLUSTER X4 | 1.2 | 14.2 | ||||||
| OSRAM | OSCONIQ P2226 GW DASPA2.EC | 89.4 | 1.6 | ||||||
| OSRAM | OSLON SSL 150 GW CSHPM1.EM | 86.2 | 0.7 | 1.1 | |||||
| OSRAM | OSTAR STAGE LE RTDUW S2WP | 30.8 | 117.7 | 84.3 | 1.0 | 14.6 | |||
| PROLIGHT OPTO | PBEE_40FTE | 86.5 | 1.2 | 14.7 | |||||
| SAMSUNG | LC010CV2 | 84.6 | 1.0 | ||||||
| SAMSUNG | LH181B | 89.7 | 1.8 | ||||||
| SEOUL | STW8C12C_E0 | 89.5 | 1.7 | ||||||
| SEOUL | Z5M4 | 88.5 | 1.6 |

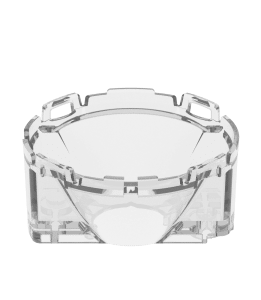

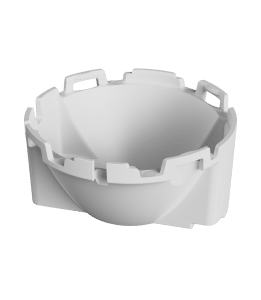

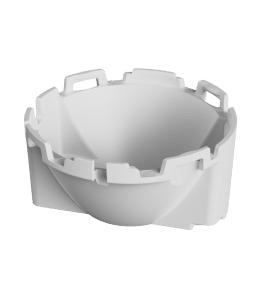

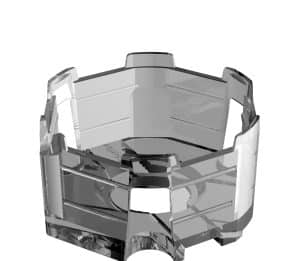

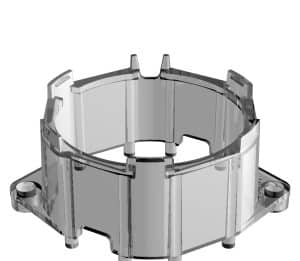

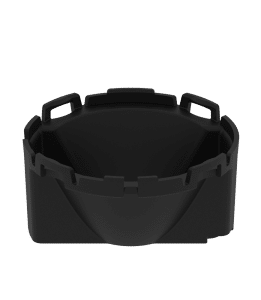

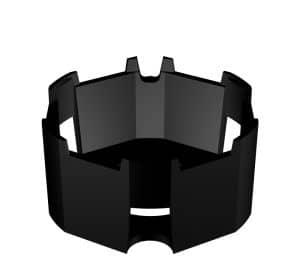

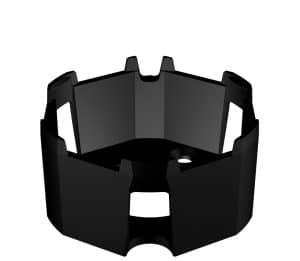

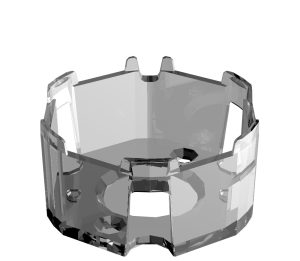

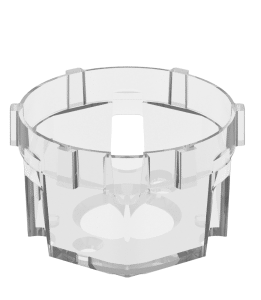

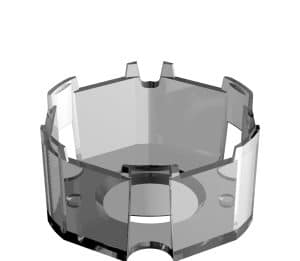

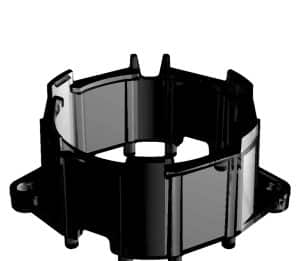

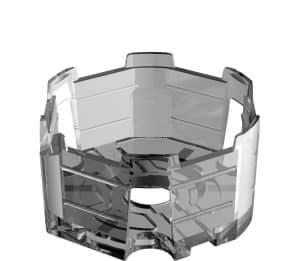

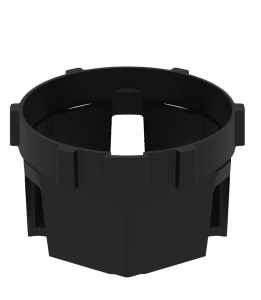

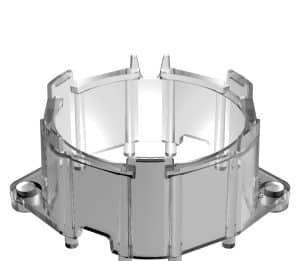

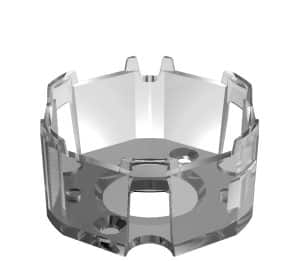

Compatible holders:

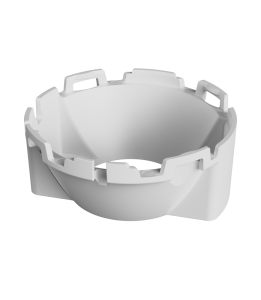

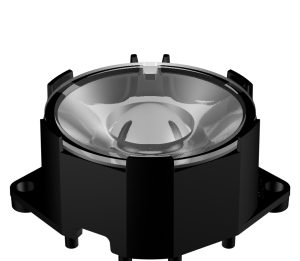

Compatible accessories:

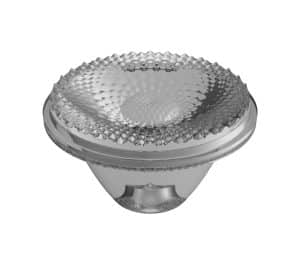

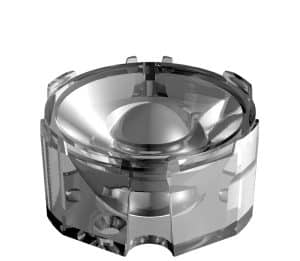

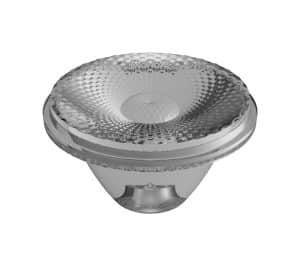

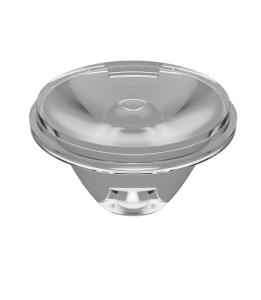

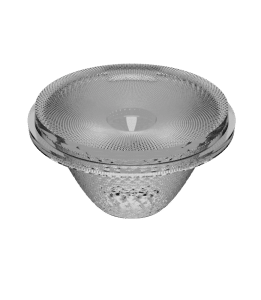

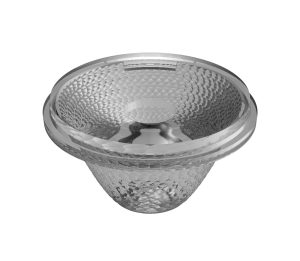

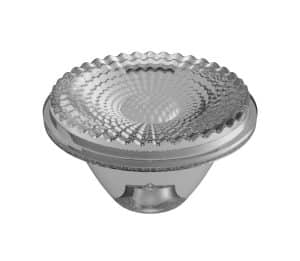

In the same family:
Find the right product for your needs
Our range of standard collimators is the result of many years of experience in the market for custom optical components. It has developed naturally in the face of constantly changing market requirements: the search for the best possible compromise between quality, reliability and cost reduction. Our collimators can be adapted to different fields of application such as automotive, medical, general lighting fixtures and light indicators on domestic devices.
Thanks to a very wide range of products, we can meet most of the technical requirements and specifications for optical solutions.
Let us guide you through our search engine; enter a reference, a material, a brand or a type of LED, characteristics of size, diameter, zoom or color mixing requirements and find the optical part adapted to your needs among the selection that is proposed to you.
Optical solutions: the result of many years of experience
GAGGIONE leverages its extensive experience and resources to provide complete capabilities throughout the design process of custom parts and optical systems. The standard range of optics is the result of a long history in the field of custom optical components. It has grown in response to constantly changing market requirements and rapid time-to-market and continues to be one of the exciting activities that GAGGIONE is used to shape its customers’ light.
