Ref:

VEGA45C1

Color Collimator

45mm COB-oriented collimator in PC

More details :

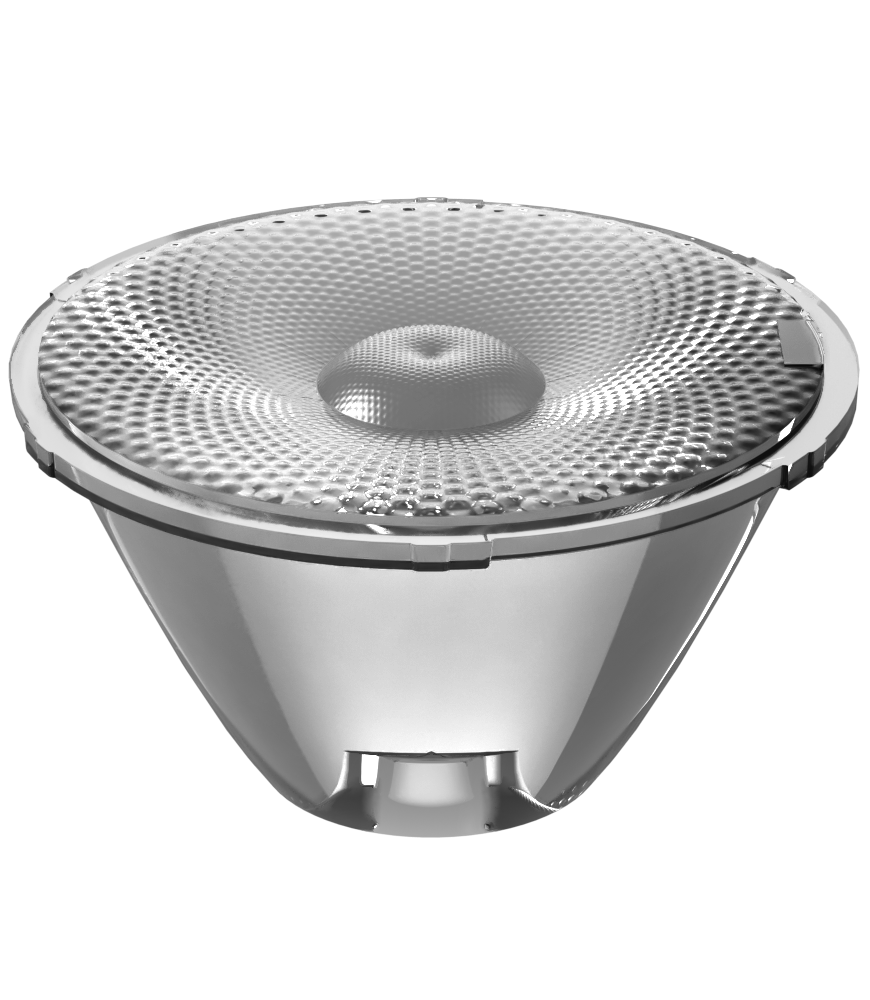

VEGA45C1 is a Ø 45mm COB-oriented collimator in PC.
VEGA45C1 is designed to provide a 11.1° narrow beam with great color mixing capability. Its close field color mixing feature makes it ideal for RGBW applications. Being based on a non chip imaging technology. it will also work with static white COB providing smooth and homogeneous beam with a great cut-off.

Discover also the PMMA version : the VEGA45C
You can also buy our sets assembled with a black holder. SVEGA45C102 or clear. SVEGA45C100 .

A technical question ? Consult the VEGA datasheet
Discover how to choose the right holder.

Refine your search:

Measured results in black Simulated results in blue

Compatibility

LED Manufacturer LED Reference FWHM 1 FWHM 2 FWTM 1 FWTM 2 Efficacy 1 Efficacy 2 CCI
CLU02Q Type-F23.742.93.80.4
BRIDGELUXV3_HD_GEN_812.523.415.41.4
BRIDGELUXV4_HD BXRH_30G0600_A_7213.325.213.2
BRIDGELUXV6 BXRE_30E0400_A_0314.527.910.3
BRIDGELUXV6 HD BXRH_40E1000_B_7315.129.29.4
BRIDGELUXVESTA 6 TW BXRV-TR-2765G-060-B-2316.230.68.51.0
CITIZENCLU7L311.421.517.91.5
CITIZENCLU7B212.423.415.5
CITIZENCLU7S312.623.614.90.7
CITIZENCLU7A213.325.412.9
CITIZENCLU7R313.325.012.70.4
CITIZENCLU7A3 Type-F13.726.012.01.2
CITIZENCLU70115.429.59.1
CITIZENCLU70215.429.88.8
CITIZENCLU70015.529.49.1
CITIZENCLU703 Type-F16.731.18.00.4
CITIZENCLU71018.434.85.8
CITIZENCLU71118.535.15.4
CITIZENCLU71218.535.35.6
CITIZENLCN-C01B220.138.74.12.0
CITIZENCLU713 Type-F21.438.84.80.9
CREEXHP35.2 HI12.022.814.61.1
CREEXP-G412.222.416.22.9
CREEXHP50.3 HD14.326.610.81.5
CREECXA 13XX14.728.09.9
CREECXB 131016.030.18.61.0
CREEXHP50.3 HI16.127.910.00.7
CREEXHP70.3 HI16.430.98.3
CREEXHP70.317.332.97.40.7
CREECXA 150717.734.35.6
CREECXA 152017.834.35.5
CREECXB 150718.835.75.3
CREECXB 152020.138.44.31.4
LUMILEDSLUXEON_CX_PLUS_CoB_HDS01H0413.926.311.6
LUMILEDSLUXEON_CX_PLUS_CoB_HDS01H0615.129.09.4
LUMILEDSLUXEON_CX_PLUS_CoB_HDM02F0917.934.65.9
LUMILEDSLUXEON COB 120218.735.85.5
LUMILEDSLUXEON_CX_PLUS_CoB_HDS04H0919.637.04.8
LUMILEDSLUXEON_CX_PLUS_COB_HD19.737.04.8
LUMINUSSST-4012.322.515.23.0
LUMINUSCXM_413.425.712.6
LUMINUSCXM_313.524.712.71.8
LUMINUSCXM_616.230.58.30.5
LUMINUSCXM_920.238.24.3
NICHIANVSW719AC11.421.617.32.4
NICHIANJNWS012Z_V1MTE14.628.010.01.6
NICHIANVNWS007Z_V114.928.69.9
NICHIANTCWT012B_V315.228.69.4
NICHIANTCWS024B_V315.730.58.3
NICHIANJCWS024Z_V116.431.97.5
NICHIANFCWL036B_V318.234.75.9
NICHIANVEWL016Z_V118.535.65.5
XICATOXTM & XIM 9MM20.138.04.72.6
